generate_boxing_pass_manager

samplomatic.transpiler.generate_boxing_pass_manager(*, enable_gates: bool = True, enable_measures: bool = True, measure_annotations: Literal['twirl', 'change_basis', 'all'] = 'twirl', twirling_strategy: Literal['active', 'active_accum', 'active_circuit', 'all'] = 'active_circuit', inject_noise_targets: Literal['none', 'gates', 'measures', 'all'] = 'none', inject_noise_strategy: Literal['no_modification', 'uniform_modification', 'individual_modification'] = 'no_modification', remove_barriers: Literal['immediately', 'finally', 'after_stratification', 'never', True, False] = 'after_stratification') → PassManager[source]

Construct a pass manager to group the operations in a circuit into boxes.

This function can be used to construct a new qiskit.transpiler.PassManager that puts the instructions of the circuit into annotated boxes.

>>> from qiskit.circuit import QuantumCircuit
>>> from samplomatic.transpiler import generate_boxing_pass_manager
>>>
>>> # Create a simple circuit to test with
>>> circuit = QuantumCircuit(3)
>>> circuit.cz(0, 1)
>>> circuit.cz(1, 2)
>>> circuit.measure_all()
>>>
>>> pm = generate_boxing_pass_manager()
>>>
>>> boxed_circuit = pm.run(circuit)
>>> boxed_circuit.draw("mpl")

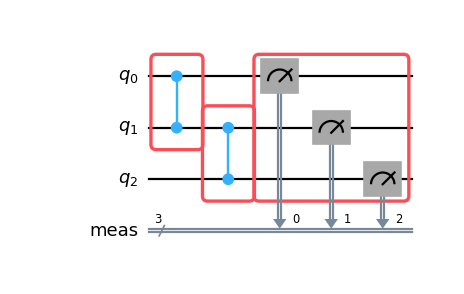

../../_images/samplomatic-transpiler-generate_boxing_pass_manager-1.png

To group instructions into boxes, a pass manager returned by this function takes the following steps in order:

  • If remove_barriers is True, it removes all the barriers in the input circuit using the qiskit.transpiler.passes.RemoveBarriers pass.

  • If enable_gates is True, using the GroupGatesIntoBoxes pass, it creates boxes containing two-qubit gates. The resulting boxes are twirl-annotated and left-dressed, and contain a single layer of two-qubit gates.

  • If enable_measures is True, it uses the GroupMeasIntoBoxes pass to group the measurements. All the resulting boxes are left dressed. Depending on the value of measure_annotations, they own a Twirl annotation, a ChangeBasis annotation, or both.

  • It adds idling qubits to the boxes following the given twirling_strategy.

  • Using the AddTerminalRightDressedBoxes pass, it adds empty right-dressed boxes to ensure that the resulting pass manager can produce circuits that can be successfully turned into a template/samplex pair by the samplomatic.build() function.

  • It uses the AbsorbSingleQubitGates pass to absorb any chains of single-qubit gates in the circuit into a box, left- or right-dressed, that immediately succeeds the chain. This will cause the gates to be folded into the dressing once the circuit is built.

  • If inject_noise_targets is not 'none', it uses the AddInjectNoise pass to replace boxes with new boxes that additionally have inject noise InjectNoise annotations.

Deprecated since version 0.14.0: Providing boolean values to the remove_barriers argument of generate_boxing_pass_manager() is deprecated as of samplomatic 0.14.0. It will be removed no earlier than 1 month after the release date. Instead, choose one of the string values.

Parameters:

  • enable_gates – Whether to collect single- and multi-qubit gates into boxes using the GroupGatesIntoBoxes pass.

  • enable_measures – Whether to collect measurements into boxes using the GroupMeasIntoBoxes pass.

  • measure_annotations –

    The annotations placed on the measurement boxes by GroupMeasIntoBoxes when enable_measures is True. The supported values are:

  • twirling_strategy –

    The strategy for whether and how twirling boxes are extended to include elligible idle qubits; the boxing pass manager begins by constructing twirling boxes that contain one layer of multi-qubit gates or measurements, preceded by all of the adjacent single-qubit gates, then, according to the value of this option, these boxes are extended idling qubits. The allowed values are:

    • 'active': No idling qubits are added to the boxes, meaning that every box only twirls the qubits that are active within the box.

    • 'active_accum': Idling qubits are added so that each individual box twirls all qubits that have been acted on by some instruction in the circuit up to and including the box.

    • 'active_circuit': Idling qubits are added so that each individual box twirls all qubits acted on by any instruction in the circuit.

    • 'all': Idling qubits are added so that each individual box twirls all of the qubits in the circuit.

  • inject_noise_targets –

    The boxes to annotate with an InjectNoise annotation using the AddInjectNoise pass. The supported values are:

    • 'none' to avoid annotating boxes of any kind.

    • 'gates' to annotate all the twirled boxes that contain entanglers, such as those created by the GroupGatesIntoBoxes pass, and avoid annotating all the other boxes.

    • 'measures' to annotate all the twirled boxes that own a classical register, such as those created by the GroupMeasIntoBoxes pass, and avoid annotating all the other boxes.

    • 'all' to target all the twirl-annotated boxes that contain entanglers and/or own classical registers.

  • inject_noise_strategy –

    The noise injection strategies supported by the AddInjectNoise pass. The following options are supported. In all these options, by “equivalent boxes” we mean boxes that are equal up to single-qubit qubit gates on the dressing side.

    • 'no_modification': All the equivalent boxes are assigned an inject noise annotation with the same ref and with modifier_ref=''.

    • 'uniform_modification': All the equivalent boxes are assigned an inject noise annotation with the same ref and with modifier_ref=ref.

    • 'individual_modification': All the equivalent boxes are assigned an inject noise annotation with the same ref. Every box is assigned a unique modifier_ref.

  • remove_barriers –

    When to apply the qiskit.transpiler.passes.RemoveBarriers pass. All possible string values are:

    • 'after_stratification' removes barriers, but only after entangler and measurement instructions have been boxed and extended with twirling_strategy, and before single-qubit gates are boxed. This effectively allows barriers to be used as hints to choose the entangler and measurement content of boxes, while also letting single-qubit gates move freely past where there had been a barrier, allowing them be absorbed into adjacent boxes.

    • 'immediately' removes barriers before doing anything else, so that existing barriers effectively have no role in box grouping.

    • 'finally' removes barriers, but only as the very last step. This causes, for example, single-qubit gates that are trapped between barriers to not be placed into boxes.

    • 'never' causes barriers to never be removed.

    Boolean values are deprecated such that True corresponds to 'immediately' and False corresponds to 'never'.

Returns:

A pass manager that groups operations into boxes.

Raises:

TranspilerError – If the user selects a combination of inputs that is not supported.
