Build an LUCJ ansatz

Important

The concepts in this guide are currently available only in the Python API. Equivalent functionality will be made available in the C API in a future release.

The local unitary cluster Jastrow (LUCJ) ansatz is a compact, hardware-efficient parametrization of a correlated electronic wavefunction. It is a member of the more general unitary cluster Jastrow (UCJ) family and takes the form

\[\lvert \Psi \rangle = \left(\prod_{k=1}^{L} \mathcal{U}_k\, e^{i \mathcal{J}_k}\, \mathcal{U}_k^\dagger\right) \lvert \Phi_0 \rangle,\]

where \(\lvert \Phi_0 \rangle\) is a reference state (typically Hartree-Fock), each \(\mathcal{U}_k\) is an orbital rotation, and each \(\mathcal{J}_k\) is a diagonal Coulomb operator

\[\mathcal{J} = \frac12 \sum_{ij,\sigma\tau} \mathbf{J}^{\sigma\tau}_{ij}\, n_{i\sigma}\, n_{j\tau},\]

with \(n_{i\sigma}\) the number operator on spatial orbital \(i\) with spin \(\sigma\). This guide shows how to assemble such an ansatz for a real molecule using the UCJ gate from qiskit_fermions.circuit.library.

1. Run the classical calculation

The (L)UCJ ansatz can be initialized from the amplitudes of a coupled-cluster singles and doubles (CCSD) calculation. Run restricted Hartree-Fock followed by CCSD for a hydrogen molecule in the 6-31g basis, using PySCF for the quantum chemistry.

>>> import pyscf
>>> import pyscf.cc
>>>
>>> # build the molecule and run Hartree-Fock
>>> mol = pyscf.gto.Mole()
>>> mol.build(
...     atom=[["H", (0, 0, 0)], ["H", (0, 0, 0.74)]],
...     basis="6-31g",
...     symmetry="Dooh",
...     verbose=0,
... )
<pyscf.gto.mole.Mole object at ...>
>>> scf = pyscf.scf.RHF(mol).run()
>>>
>>> mo_coeff = scf.mo_coeff
>>> norb = mo_coeff.shape[1]
>>> nelec = (mol.nelec[0], mol.nelec[1])
>>>
>>> # run CCSD for the t-amplitudes
>>> ccsd = pyscf.cc.CCSD(scf).run()
>>> t1, t2 = ccsd.t1, ccsd.t2

2. Build the molecular Hamiltonian as a fermionic operator

The Hamiltonian is needed later to evaluate the ansatz energy. Build it directly as a FermionOperator from the molecular-orbital integrals: the one-body integrals h1e (the core Hamiltonian in the MO basis), the two-body integrals h2e (from pyscf.ao2mo()), and the constant nuclear-repulsion energy. The electronic-integral constructors from_1body_tril_spin_sym() and from_2body_tril_spin_sym() expect the integrals in packed (lower-triangular) chemist ordering, which is what PySCF produces.

>>> from pyscf import ao2mo, lib
>>>
>>> from qiskit_fermions.operators import FermionOperator
>>>
>>> # one- and two-body molecular-orbital integrals and the nuclear-repulsion energy
>>> h1e = mo_coeff.T @ scf.get_hcore() @ mo_coeff
>>> h2e = ao2mo.kernel(mol, mo_coeff)
>>> ecore = mol.energy_nuc()
>>>
>>> # pack into the lower-triangular chemist-ordered layout the constructors expect
>>> h1e_tril = lib.pack_tril(h1e)
>>> h2e_tril = lib.pack_tril(h2e)
>>>
>>> hamiltonian = ecore * FermionOperator.one()
>>> hamiltonian += FermionOperator.from_1body_tril_spin_sym(h1e_tril, norb)
>>> hamiltonian += FermionOperator.from_2body_tril_spin_sym(h2e_tril, norb)

3. Build the LUCJ circuit

The UCJ gate assembles the ansatz directly from the coupled-cluster amplitudes. Its from_t_amplitudes() constructor performs a double factorization of the \(t_2\) amplitudes (by using double_factorized_t2()) to obtain the per-layer diagonal Coulomb matrices and orbital rotations, and derives an optional final orbital rotation from the \(t_1\) amplitudes.

The number of ansatz repetitions, \(L\), equals the number of terms in the double factorization. Truncating it with the n_reps argument trades some accuracy for a shallower circuit; here the two largest terms are kept, which recovers most of the correlation energy while halving the number of layers.

>>> from qiskit_fermions.circuit import FermionicCircuit
>>> from qiskit_fermions.circuit.library import InitializeModes, UCJ
>>>
>>> ansatz = UCJ.from_t_amplitudes(nelec, t2, t1=t1, n_reps=2)
>>>
>>> circuit = FermionicCircuit(2 * norb)
>>> circuit.append(InitializeModes.from_hartree_fock(norb, nelec), circuit.modes)
>>> circuit.append(ansatz, circuit.modes)

The UCJ gate is a pure unitary carrying no reference of its own, so prepend an InitializeModes gate (built with from_hartree_fock()) to supply the Hartree-Fock reference the ansatz is applied to. Decomposing the circuit reveals its anatomy. The InitializeModes gate prepares the reference determinant, and each ansatz layer contributes an OrbitalRotation \(\mathcal{U}_k^\dagger\), then \(e^{i\mathcal{J}_k}\) (an Evolution of the diagonal Coulomb operator \(\mathcal{J}_k\)), then \(\mathcal{U}_k\), with a final OrbitalRotation at the end. The orbital rotations act per spin sector, so each is placed on the alpha modes 0..norb and the beta modes norb..2*norb independently.

>>> circuit.decompose().draw("mpl", fold=-1)
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

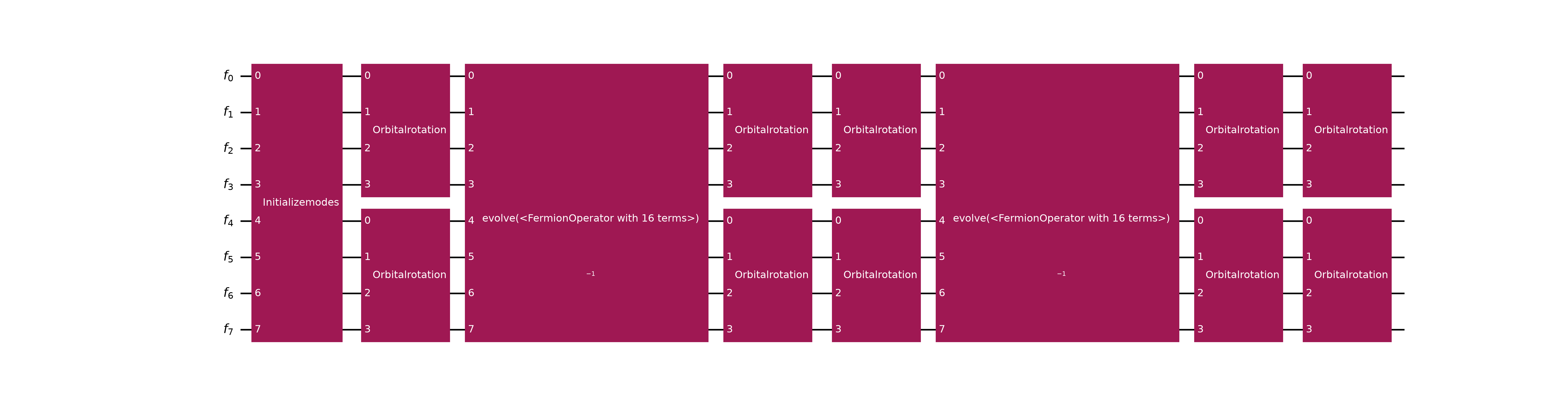

The gates that the UCJ ansatz decomposes into.

Note

Each layer ends with \(\mathcal{U}_k\) and the next begins with \(\mathcal{U}_{k+1}^\dagger\), so adjacent OrbitalRotation gates could be merged into a single rotation. A transpilation pass performing this fusion is a planned future development.

4. Simulate the ansatz and evaluate its energy

Because every gate in the circuit implements ffsim’s ffsim.SupportsApplyUnitary protocol, the whole FermionicCircuit can be applied to a fixed particle-number state vector with ffsim.apply_unitary(), starting from the Hartree-Fock reference. The FermionOperator likewise implements ffsim’s ffsim.SupportsLinearOperator protocol, so you can obtain a SciPy LinearOperator for it via ffsim.linear_operator() and evaluate the ansatz energy as the expectation value of the molecular Hamiltonian.

>>> import ffsim
>>> import numpy as np
>>>
>>> reference = ffsim.hartree_fock_state(norb, nelec)
>>> state = ffsim.apply_unitary(reference, circuit, norb=norb, nelec=nelec)
>>>
>>> linop = ffsim.linear_operator(hamiltonian, norb=norb, nelec=nelec)
>>> energy = np.vdot(state, linop @ state).real
>>> print(f"LUCJ energy: {energy:.8f} Hartree")
LUCJ energy: -1.14618323 Hartree

The LUCJ energy improves substantially on the Hartree-Fock reference and approaches the CCSD energy it was initialized from; the small remaining gap is the price of truncating the ansatz to two repetitions:

>>> print(f"Hartree-Fock: {scf.e_tot:.8f} Hartree")
Hartree-Fock: -1.12675532 Hartree
>>> print(f"CCSD:         {ccsd.e_tot:.8f} Hartree")
CCSD:         -1.15167268 Hartree

5. (Optional) Use ffsim’s compressed double factorization

The UCJ gate above is initialized from an exact double factorization of the \(t_2\) amplitudes. The number of ansatz repetitions \(L\) is whatever that factorization yields (up to the n_reps truncation), and each layer reproduces one factorized term exactly. ffsim additionally offers an optimized (“compressed”) double factorization, its from_t_amplitudes(..., optimize=True), which variationally fits the amplitudes with a chosen, typically smaller, number of repetitions. This trades a classical optimization up front for a shallower ansatz at a target accuracy, and has no equivalent in this package.

There is no need to re-implement it: an ffsim UCJ operator exposes the same tensors that UCJ is built from, so you can construct the operator with optimize=True and hand its diag_coulomb_mats / orbital_rotations / final_orbital_rotation straight to the UCJ constructor.

>>> compressed = ffsim.UCJOpSpinBalanced.from_t_amplitudes(
...     t2, t1=t1, n_reps=2, optimize=True
... )
>>>
>>> compressed_ansatz = UCJ(
...     "balanced",
...     compressed.diag_coulomb_mats,
...     compressed.orbital_rotations,
...     final_orbital_rotation=compressed.final_orbital_rotation,
... )
>>>
>>> compressed_circuit = FermionicCircuit(2 * norb)
>>> compressed_circuit.append(
...     InitializeModes.from_hartree_fock(norb, nelec), compressed_circuit.modes
... )
>>> compressed_circuit.append(compressed_ansatz, compressed_circuit.modes)

The resulting circuit is used like the one built from the exact factorization (the UCJ gate does not care how its tensors were obtained), and evaluating its energy the same way recovers the same correlation energy at this (small) system size:

>>> state = ffsim.apply_unitary(reference, compressed_circuit, norb=norb, nelec=nelec)
>>> energy = np.vdot(state, linop @ state).real
>>> print(f"compressed LUCJ energy: {energy:.8f} Hartree")
compressed LUCJ energy: -1.14618323 Hartree

Note

diag_coulomb_mats from optimize=True might carry tiny imaginary round-off; UCJ takes their real part and raises only if the imaginary part is not negligible. For a better fit at a given n_reps (at increased classical cost) see ffsim’s multi_stage_start / multi_stage_step options.

6. Transpile the ansatz to a qubit circuit

To run the ansatz on hardware, it must be lowered from fermionic modes to qubits. The generate_preset_jw_pass_manager() preset builds a staged pipeline that maps the fermionic circuit through the Jordan-Wigner transformation and synthesizes each gate into a qubit-level circuit. The composite UCJ gate must first be decomposed into its primitive gates (OrbitalRotation, Evolution, …) so the pipeline’s optimization stage can act on them, so pass circuit.decompose().

>>> from qiskit_fermions.transpiler.presets import generate_preset_jw_pass_manager
>>>
>>> # ``circuit`` is the exact-factorization ansatz assembled in step 3
>>> pm = generate_preset_jw_pass_manager()
>>> transpiled = pm.run(circuit.decompose())
>>> print(dict(sorted(transpiled.count_ops().items())))
{'p': 16, 'rzz': 12, 'x': 2, 'xx_plus_yy': 28}

Without a target device, this maps onto 2 * norb qubits with all-to-all connectivity assumed; the orbital rotations synthesize into XXPlusYYGateobjects and the diagonal Coulomb evolutions into RZZGateobjects:

>>> transpiled.draw("mpl", fold=-1)
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

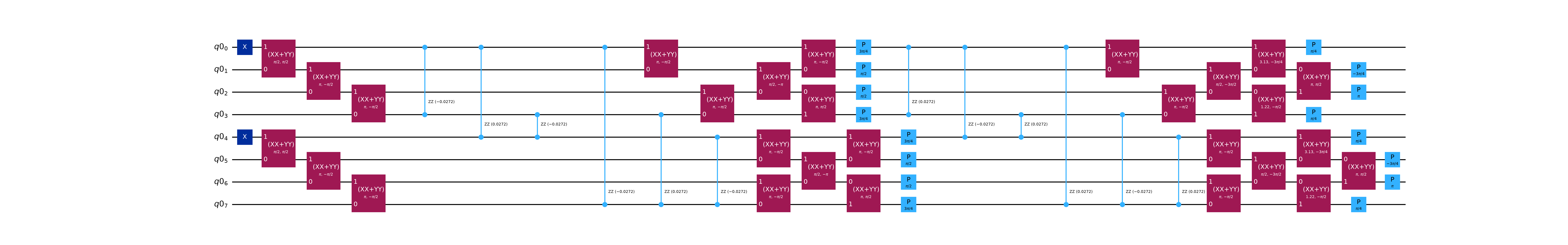

The Jordan-Wigner transpiled LUCJ circuit.

Target hardware connectivity with ffsim’s LUCJ pass manager

A real device has a restricted qubit coupling map, and the LUCJ ansatz is designed to match it. The same-spin (pairs_aa) interactions form two linear chains and the alpha-beta (pairs_ab) interactions bridge them. ffsim’s generate_lucj_pass_manager() builds a device-aware qubit pipeline for this structure, and returns the subset of pairs_ab the hardware can actually accommodate. Slot that pipeline into the preset’s qubit stage while keeping the package’s own fermion-to-qubit synthesis:

>>> from ffsim.qiskit import generate_lucj_pass_manager
>>> from qiskit.providers.fake_provider import GenericBackendV2
>>> from qiskit.transpiler import CouplingMap
>>>
>>> # a heavy-hex device coupling map (any BackendV2 works, e.g. a real fake_provider backend)
>>> coupling_map = CouplingMap.from_heavy_hex(5)
>>> backend = GenericBackendV2(
...     num_qubits=coupling_map.size(),
...     basis_gates=["cp", "xx_plus_yy", "p", "x", "swap"],
...     coupling_map=coupling_map,
... )
>>>
>>> # nearest-neighbor same-spin chain; let the pass manager choose the alpha-beta pairs
>>> pairs_aa = [(p, p + 1) for p in range(norb - 1)]
>>>
>>> pm = generate_preset_jw_pass_manager()
>>> pm.qubit, allowed_pairs_ab = generate_lucj_pass_manager(
...     backend, norb, "heavy-hex", (pairs_aa, None), optimization_level=3, seed_transpiler=0
... )
>>>
>>> # the alpha-beta interactions the heavy-hex connectivity can implement
>>> print(allowed_pairs_ab)
[(0, 0)]

With pm.qubit now set to the device-aware pipeline, running the pass manager lays the circuit out on the backend’s qubits and routes it to the coupling map. For the unrestricted ansatz from step 3, whose diagonal Coulomb operator still contains alpha-beta terms the hardware cannot reach directly, the router must insert many SWAP gates to bridge them:

>>> naive = pm.run(circuit.decompose())
>>> naive.num_qubits  # laid out on the full heavy-hex device register
57
>>> naive_swaps = naive.count_ops()["swap"]
>>> naive_swaps  # many SWAPs to bridge the unreachable alpha-beta interactions
33

Restrict the ansatz to the hardware-implementable interactions

The fix is to feed allowed_pairs_ab back into the ansatz construction, through the interaction_pairs argument of from_t_amplitudes(), so the diagonal Coulomb operator only contains alpha-beta terms the coupling map can implement directly. The ansatz then matches the device topology and the router barely has to touch it:

>>> restricted = UCJ.from_t_amplitudes(
...     nelec, t2, t1=t1, n_reps=2, interaction_pairs=(pairs_aa, allowed_pairs_ab)
... )
>>>
>>> circuit = FermionicCircuit(2 * norb)
>>> circuit.append(InitializeModes.from_hartree_fock(norb, nelec), circuit.modes)
>>> circuit.append(restricted, circuit.modes)
>>>
>>> transpiled = pm.run(circuit.decompose())
>>> restricted_swaps = transpiled.count_ops()["swap"]
>>> restricted_swaps  # far fewer routing SWAPs than the unrestricted ansatz
4

Drawing only the active qubits (idle_wires=False) shows the circuit restricted to the two spin chains and the alpha-beta bridge, expressed in the device basis gates. Layout and routing scatter the logical modes across the device’s physical qubits, so pass a wire_order taken from the circuit’s final layout (final_index_layout() lists the physical qubit each input qubit ended on, in input-qubit order) to draw the wires back in the original mode order:

>>> wire_order = transpiled.layout.final_index_layout(filter_ancillas=False)
>>> transpiled.draw("mpl", idle_wires=False, fold=-1, wire_order=wire_order)
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

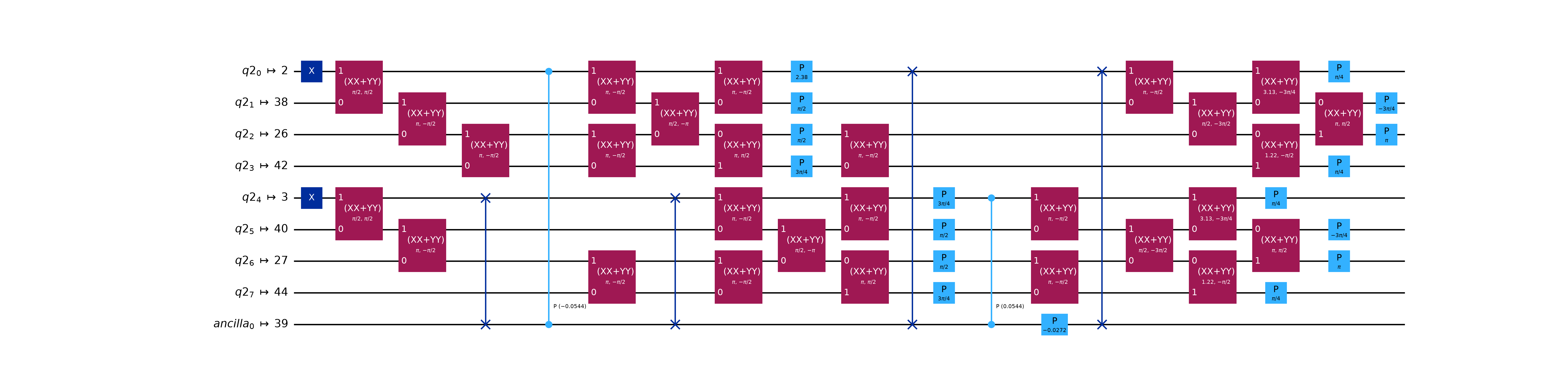

The hardware-restricted LUCJ circuit routed onto the heavy-hex device coupling map.

Note

The exact post-layout gate counts and depth depend on the routing/optimization passes and the chosen device, so they are not reproduced here. The key point is the co-design; expressing the ansatz with a nearest-neighbor pairs_aa chain and hardware-filtered pairs_ab bridges keeps the synthesized circuit close to the device topology, minimizing the routing overhead (inserted SWAP gates). See GivensDecompositionSlaterDeterminantSynthesis for a related synthesis choice (minimize_2q_gate_count), trading two-qubit gate count against routed depth.
