Transpile an LUCJ ansatz

Important

The concepts in this guide are only available in the Python API.

The local unitary cluster Jastrow (LUCJ) ansatz is a compact, hardware-efficient parametrization of a correlated electronic wavefunction. It is a member of the more general unitary cluster Jastrow (UCJ) family and takes the form

\[\lvert \Psi \rangle = \left(\prod_{k=1}^{L} \mathcal{U}_k\, e^{i \mathcal{J}_k}\, \mathcal{U}_k^\dagger\right) \lvert \Phi_0 \rangle,\]

where \(\lvert \Phi_0 \rangle\) is a reference state (typically Hartree-Fock), each \(\mathcal{U}_k\) is an orbital rotation, and each \(\mathcal{J}_k\) is a diagonal Coulomb operator

\[\mathcal{J} = \frac12 \sum_{ij,\sigma\tau} \mathbf{J}^{\sigma\tau}_{ij}\, n_{i\sigma}\, n_{j\tau},\]

with \(n_{i\sigma}\) the number operator on spatial orbital \(i\) with spin \(\sigma\).

ffsim builds the ansatz operator; this package turns it into a circuit and lowers that circuit onto qubits. This guide is about the second half of that sentence. The reason to make the trip is the lowering itself: ffsim’s own Qiskit gates are specific to the Jordan-Wigner transformation, whereas a FermionicCircuit carries no assumption about its fermion-to-qubit encoding, so the same ansatz can be synthesized through whichever encoding suits the target device.

The ansatz operator therefore arrives here ready-made, and everything below is what happens to it afterwards: what the gate decomposes into, how it lowers through Jordan-Wigner, how it is matched to a device coupling map, and what a non-Jordan-Wigner lowering would still need. For building, parametrizing, or simulating a UCJ ansatz in the first place, see ffsim’s own guides.

See also

The ffsim relationship guide for how the two packages divide the work, and the transpilation guide for the pipeline stages used below.

1. Get an LUCJ operator from ffsim

The ansatz is initialized from the amplitudes of a coupled-cluster singles and doubles (CCSD) calculation. Run restricted Hartree-Fock followed by CCSD for a hydrogen molecule in the 6-31g basis, using PySCF for the quantum chemistry, then hand the amplitudes to ffsim’s from_t_amplitudes(). It performs a double factorization of the \(t_2\) amplitudes to obtain the per-layer diagonal Coulomb matrices and orbital rotations, and derives an optional final orbital rotation from the \(t_1\) amplitudes. The number of repetitions \(L\) is whatever that factorization yields; n_reps truncates it, trading accuracy for a shallower circuit.

>>> import ffsim
>>> import pyscf
>>> import pyscf.cc
>>>
>>> # build the molecule and run Hartree-Fock
>>> mol = pyscf.gto.Mole()
>>> mol.build(
...     atom=[["H", (0, 0, 0)], ["H", (0, 0, 0.74)]],
...     basis="6-31g",
...     symmetry="Dooh",
...     verbose=0,
... )
<pyscf.gto.mole.Mole object at ...>
>>> scf = pyscf.scf.RHF(mol).run()
>>>
>>> norb = scf.mo_coeff.shape[1]
>>> nelec = (mol.nelec[0], mol.nelec[1])
>>>
>>> # run CCSD for the t-amplitudes, then factorize them into an ansatz operator
>>> ccsd = pyscf.cc.CCSD(scf).run()
>>> t1, t2 = ccsd.t1, ccsd.t2
>>>
>>> ucj_op = ffsim.UCJOpSpinBalanced.from_t_amplitudes(t2, t1=t1, n_reps=2)

This is where the ansatz stops being an ffsim concern. ffsim offers choices here that this package neither sees nor needs to know about, such as the variationally optimized (“compressed”) factorization behind optimize=True, or the parameter-vector packing that a variational optimizer drives. All of them produce the same kind of operator, and everything below works unchanged on any of them.

2. Turn the operator into a fermionic circuit

The UCJ gate wraps the operator and expresses it as a circuit over fermionic modes. The gate is a pure unitary carrying no reference of its own, so prepend an InitializeModes gate (built with from_hartree_fock()) to supply the Hartree-Fock reference the ansatz is applied to.

>>> from qiskit_fermions.circuit import FermionicCircuit
>>> from qiskit_fermions.circuit.library import InitializeModes, UCJ
>>>
>>> ansatz = UCJ(ucj_op)
>>>
>>> circuit = FermionicCircuit(2 * norb)
>>> circuit.append(InitializeModes.from_hartree_fock(norb, nelec), circuit.modes)
>>> circuit.append(ansatz, circuit.modes)

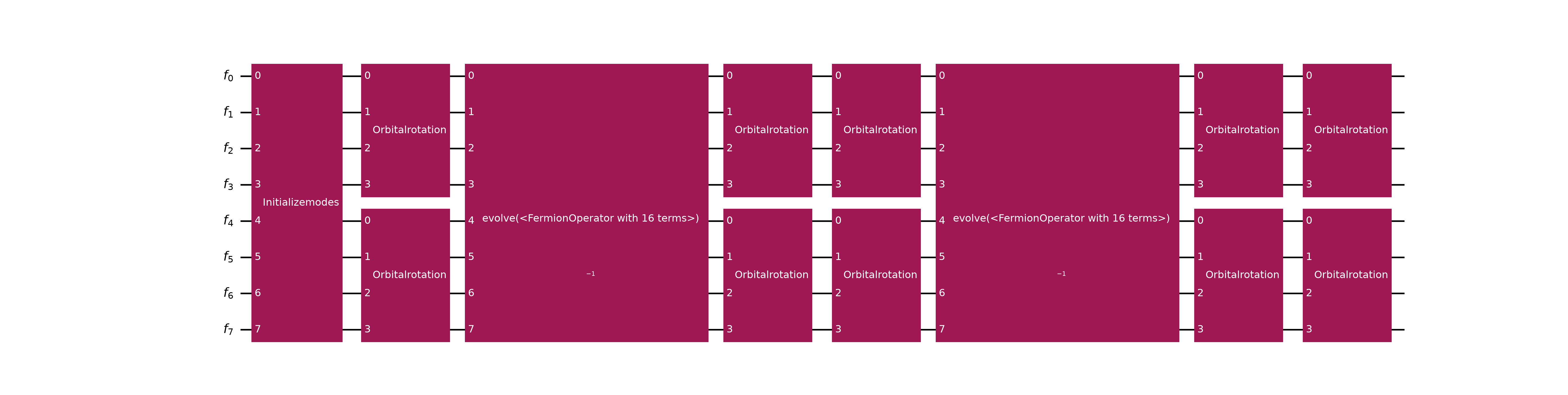

Decomposing the circuit reveals its anatomy, and this is the representation the rest of the guide operates on. The InitializeModes gate prepares the reference determinant, and each ansatz layer contributes an OrbitalRotation \(\mathcal{U}_k^\dagger\), then \(e^{i\mathcal{J}_k}\) (an Evolution of the diagonal Coulomb operator \(\mathcal{J}_k\)), then \(\mathcal{U}_k\), with a final OrbitalRotation at the end. The orbital rotations act per spin sector, so each is placed on the alpha modes 0..norb and the beta modes norb..2*norb independently.

>>> circuit.decompose().draw("mpl", fold=-1)
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

The gates that the UCJ ansatz decomposes into.

Every gate in that decomposition is still fermionic: OrbitalRotation and Evolution are defined on modes, and no qubit or Pauli operator has appeared yet. That is what leaves the encoding open, and it is the state the ansatz stays in until the synthesis stage picks one.

Note

Each layer ends with \(\mathcal{U}_k\) and the next begins with \(\mathcal{U}_{k+1}^\dagger\), so adjacent OrbitalRotation gates could be merged into a single rotation. A transpilation pass performing this fusion is a planned future development.

3. Choose a fermion-to-qubit encoding

The circuit is still fermionic, and that is the point at which this package earns its place in the workflow. A FermionicCircuit carries no assumption about how modes become qubits, so the encoding is a synthesis-stage choice rather than something baked into the ansatz. That is what this package adds over ffsim’s own Qiskit gates, which are specific to the Jordan-Wigner transformation.

For Jordan-Wigner alone you would not need this detour: ffsim ships UCJOpSpinBalancedJW and its siblings, which take a UCJ operator to a qubit circuit on their own. The reason to route the ansatz through a fermionic circuit is everything else an encoding can buy you. Local encodings, for instance, spend extra qubits to bound the Pauli weight of each term, which the 1D and 2D flow-set guides use to make a Trotter step’s two-qubit depth independent of the system size.

For a UCJ ansatz specifically, two pieces are needed to take that other path, and only the first exists today:

So UCJ under a non-Jordan-Wigner encoding is an open direction rather than a worked recipe, and one this workflow is meant to enable. Expect this to firm up as further encodings land in the mapper library.

4. Lower it through Jordan-Wigner

The rest of this guide takes the encoding that ships as a preset, which is also the simplest one to follow. generate_preset_jw_pass_manager() builds a staged pipeline that maps the fermionic circuit through the Jordan-Wigner transformation and synthesizes each gate into a qubit-level circuit. The composite UCJ gate must first be decomposed into its primitive gates (OrbitalRotation, Evolution, …) so the pipeline’s optimization stage can act on them, so pass circuit.decompose().

>>> from qiskit_fermions.transpiler.presets import generate_preset_jw_pass_manager
>>>
>>> pm = generate_preset_jw_pass_manager()
>>> transpiled = pm.run(circuit.decompose())
>>> print(dict(sorted(transpiled.count_ops().items())))
{'p': 14, 'rzz': 12, 'x': 2, 'xx_plus_yy': 28}

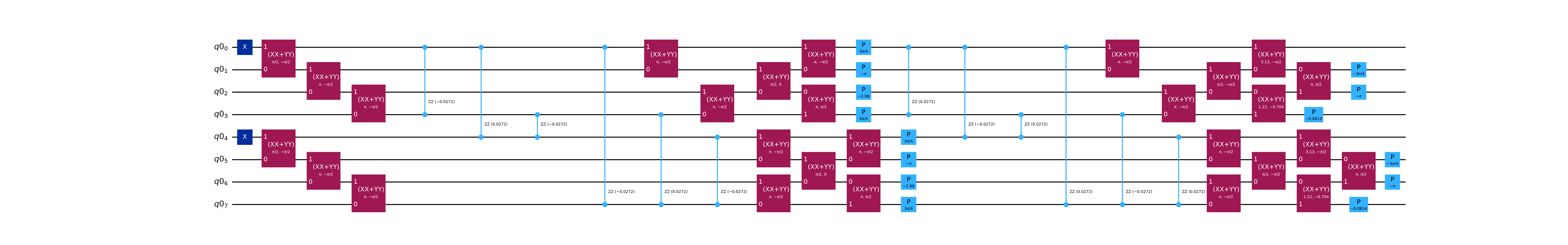

Without a target device, this maps onto 2 * norb qubits with all-to-all connectivity assumed; the orbital rotations synthesize into XXPlusYYGateobjects and the diagonal Coulomb evolutions into RZZGateobjects:

>>> transpiled.draw("mpl", fold=-1)
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

The Jordan-Wigner transpiled LUCJ circuit.

5. Match the device topology

A real device has a restricted qubit coupling map, and the LUCJ ansatz is designed to match it. The same-spin (pairs_aa) interactions form two linear chains and the alpha-beta (pairs_ab) interactions bridge them. ffsim’s generate_lucj_pass_manager() builds a device-aware qubit pipeline for this structure, and returns the subset of pairs_ab the hardware can actually accommodate. Slot that pipeline into the preset’s qubit stage while keeping the package’s own fermion-to-qubit synthesis:

>>> from ffsim.qiskit import generate_lucj_pass_manager
>>> from qiskit.providers.fake_provider import GenericBackendV2
>>> from qiskit.transpiler import CouplingMap
>>>
>>> # a heavy-hex device coupling map (any BackendV2 works, e.g. a real fake_provider backend)
>>> coupling_map = CouplingMap.from_heavy_hex(5)
>>> backend = GenericBackendV2(
...     num_qubits=coupling_map.size(),
...     basis_gates=["cp", "xx_plus_yy", "p", "x", "swap"],
...     coupling_map=coupling_map,
... )
>>>
>>> # nearest-neighbor same-spin chain; let the pass manager choose the alpha-beta pairs
>>> pairs_aa = [(p, p + 1) for p in range(norb - 1)]
>>>
>>> pm = generate_preset_jw_pass_manager()
>>> pm.qubit, allowed_pairs_ab = generate_lucj_pass_manager(
...     backend, norb, "heavy-hex", (pairs_aa, None), optimization_level=3, seed_transpiler=0
... )
>>>
>>> # the alpha-beta interactions the heavy-hex connectivity can implement
>>> print(allowed_pairs_ab)
[(0, 0)]

That composition is the point: the qubit stage is device-aware, while the fermion-to-qubit synthesis stage ahead of it stays this package’s own, and so stays replaceable.

With pm.qubit now set to the device-aware pipeline, running the pass manager lays the circuit out on the backend’s qubits and routes it to the coupling map. For the unrestricted ansatz from step 1, whose diagonal Coulomb operator still contains alpha-beta terms the hardware cannot reach directly, the router must insert many SWAP gates to bridge them:

>>> naive = pm.run(circuit.decompose())
>>> naive.num_qubits  # laid out on the full heavy-hex device register
57
>>> naive_swaps = naive.count_ops()["swap"]
>>> naive_swaps  # many SWAPs to bridge the unreachable alpha-beta interactions
33

Restrict the ansatz to the hardware-implementable interactions

The fix is to feed allowed_pairs_ab back into the ansatz construction, through the interaction_pairs argument of from_t_amplitudes(), so the diagonal Coulomb operator only contains alpha-beta terms the coupling map can implement directly. The ansatz then matches the device topology and the router barely has to touch it:

>>> restricted = UCJ(
...     ffsim.UCJOpSpinBalanced.from_t_amplitudes(
...         t2, t1=t1, n_reps=2, interaction_pairs=(pairs_aa, allowed_pairs_ab)
...     )
... )
>>>
>>> circuit = FermionicCircuit(2 * norb)
>>> circuit.append(InitializeModes.from_hartree_fock(norb, nelec), circuit.modes)
>>> circuit.append(restricted, circuit.modes)
>>>
>>> transpiled = pm.run(circuit.decompose())
>>> restricted_swaps = transpiled.count_ops()["swap"]
>>> restricted_swaps  # far fewer routing SWAPs than the unrestricted ansatz
4

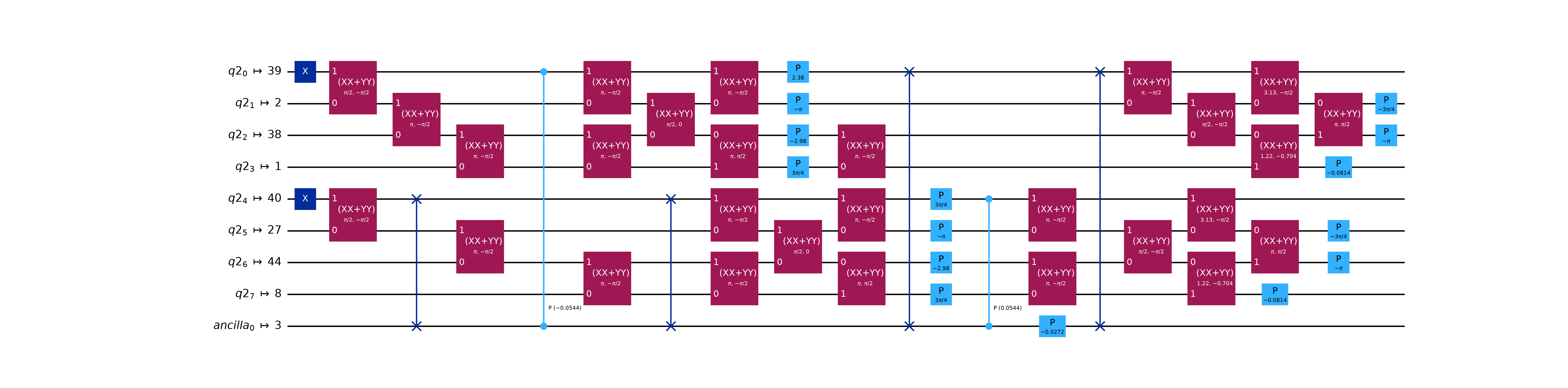

Drawing only the active qubits (idle_wires=False) shows the circuit restricted to the two spin chains and the alpha-beta bridge, expressed in the device basis gates. Layout and routing scatter the logical modes across the device’s physical qubits, so pass a wire_order taken from the circuit’s final layout (final_index_layout() lists the physical qubit each input qubit ended on, in input-qubit order) to draw the wires back in the original mode order:

>>> wire_order = transpiled.layout.final_index_layout(filter_ancillas=False)
>>> transpiled.draw("mpl", idle_wires=False, fold=-1, wire_order=wire_order)
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

The hardware-restricted LUCJ circuit routed onto the heavy-hex device coupling map.

Note

The exact post-layout gate counts and depth depend on the routing/optimization passes and the chosen device, so they are not reproduced here. The key point is the co-design; expressing the ansatz with a nearest-neighbor pairs_aa chain and hardware-filtered pairs_ab bridges keeps the synthesized circuit close to the device topology, minimizing the routing overhead (inserted SWAP gates). See GivensDecompositionSlaterDeterminantSynthesis for a related synthesis choice (minimize_2q_gate_count), trading two-qubit gate count against routed depth.
