Simulate 1D Fermi-Hubbard dynamics with flow sets

Important

The functions described in this guide are currently available only in the Python API. Equivalent functionality will be made available in the C API in a future release.

This guide builds a circuit for the time dynamics of the one-dimensional Fermi-Hubbard model, from writing down the Hamiltonian to checking the evolved site densities. What makes the route interesting is a single idea, taken from the flow set framework of Gandon et al. [1], the work that also motivated the TransferVertexOperator in this package:

Instead of grouping Hamiltonian terms after the fermion-to-qubit mapping, group them before it, into flow sets, one-dimensional subsets of the directed fermionic interaction graph whose transfer operators mutually commute.

That choice drives everything below. It calls for the following:

• A custom fermion-to-qubit encoding tailored to the flow sets, which here spends one ancilla qubit so the qubit count associated with the implementation of a given Hamiltonian term no longer grows with the number of fermionic modes (as is the case for Jordan-Wigner (JW)).

• A custom synthesis that exploits the commutativity within each set. The payoff is a circuit whose two-qubit depth is constant in the system size, against the linear growth of a JW-based term-by-term Trotterization.

The machinery that gets an encoding of your own into the transpiler (CustomF2QLayout and MapperFnEvolutionSynthesis) carries over to any model.

See also

The transpilation guide for the transpiler stages referenced throughout, and the mappers guide for the general recipe for writing a custom mapper.

Transfer operators and flow sets

A TransferVertexOperator is built from vertex operators \(V_j\) and transfer operators \(T_{jk}\). In terms of fermionic creation and annihilation operators,

\[V_j = 1 - 2 a^\dagger_j a_j \, , \qquad T_{jk} = -\tfrac{1}{2} \left( a^\dagger_j - a_j \right) \left( a^\dagger_k + a_k \right) \, ,\]

so \(V_j\) measures the occupation of mode \(j\) (it is \(+1\) when empty and \(-1\) when filled), while \(T_{jk}\) transfers a fermion along the directed edge \(j \to k\). Note that the two indices of \(T_{jk}\) are not interchangeable. The first index carries the minus combination and the second carries the plus, which is what makes \(T_{jk}\) distinct from \(T_{kj}\) and gives the edge its orientation.

These satisfy mixed commutation relations. Two transfer operators acting on disjoint sites commute trivially, since each is an even product of fermionic operators. The interesting case is a shared site. There, the two commute if the arrows flow through that site (one arrives, one leaves) and anticommute if they clash (both arrive, or both leave).

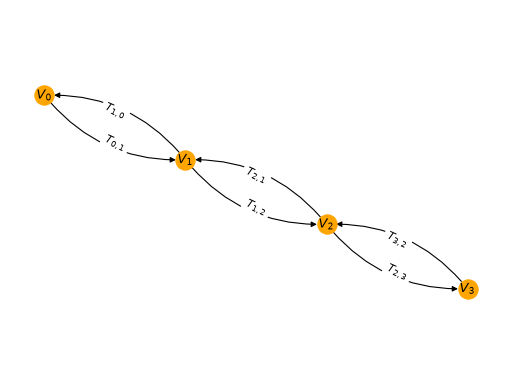

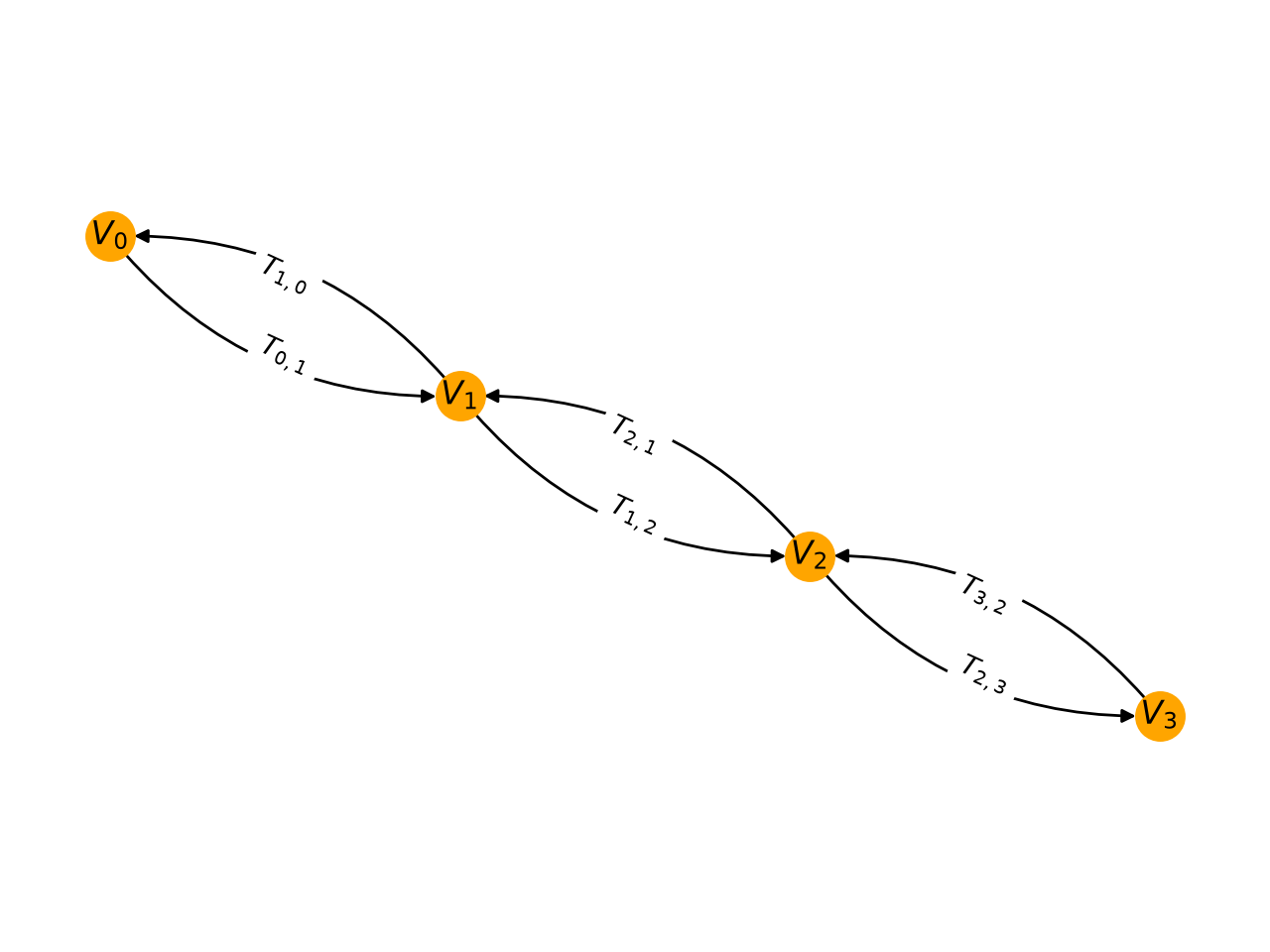

The rule is easiest to see on a picture. Drawing the vertices as nodes and each \(T_{jk}\) as an arrow from \(j\) to \(k\) gives the directed interaction graph, here for the four-site chain used throughout this guide, which carries both orientations of every bond:

(png, hires.png, pdf)

Trace the rule on the figure. Look at \(T_{1,2}\) and \(T_{2,3}\), for example. One arrow arrives at site 2 and the other leaves it, so the fermion flows straight through and the two operators commute. Look instead at \(T_{1,2}\) and \(T_{3,2}\). Both arrows point into site 2. They clash, and those two anticommute.

This is what makes flow sets possible. Pick a set of arrows forming a directed path and every pair either meets head-to-tail or does not meet at all, so the whole set commutes, even though the individual operators overlap on shared sites. Evolving under a single flow set therefore incurs no Trotter error, and as step 7 shows, it can also be done at constant circuit depth.

1. The Fermi-Hubbard Hamiltonian

The 1D Fermi-Hubbard model on \(L\) sites (spinless, open boundaries) is

\[H = -t \sum_{j} \left( a^\dagger_j a_{j+1} + a^\dagger_{j+1} a_j \right) + U \sum_{j} n_j n_{j+1} \, .\]

Following Eq. (9) of Ref. [1], the hopping term is \(t \sum_j (T_{j,j+1} + T_{j+1,j})\). The interaction is diagonal, so it is expressed through vertex operators using \(n_j = (1 - V_j)/2\):

\[n_j n_{j+1} = \tfrac{1}{4}\left( 1 - V_j - V_{j+1} + V_j V_{j+1} \right) \, .\]

Both pieces are built directly as a TransferVertexOperator. Note that \(V_j\) is stored as the diagonal entry (j, j):

>>> from collections import defaultdict
>>> from qiskit_fermions.operators import TransferVertexOperator
>>>
>>> def fermi_hubbard_1d(num_sites, tunneling, interaction):
...     data: defaultdict[tuple[tuple[int, int], ...], complex] = defaultdict(complex)
...     for j in range(num_sites - 1):
...         k = j + 1
...         # hopping: -t (a^dag_j a_k + a^dag_k a_j) = t (T_jk + T_kj)
...         data[((j, k),)] += tunneling
...         data[((k, j),)] += tunneling
...         # interaction: U n_j n_k with n_j = (1 - V_j) / 2
...         data[()] += interaction / 4
...         data[((j, j),)] -= interaction / 4
...         data[((k, k),)] -= interaction / 4
...         data[((j, j), (k, k))] += interaction / 4
...     return TransferVertexOperator.from_dict(data)
>>>
>>> num_sites = 4
>>> hamiltonian = fermi_hubbard_1d(num_sites, tunneling=1.0, interaction=2.0)
>>> print(format(hamiltonian))
  1.500000e0 +0.000000e0j * ()
-5.000000e-1 +0.000000e0j * (V(0))
 5.000000e-1 +0.000000e0j * (V(0) V(1))
  1.000000e0 +0.000000e0j * (T(0,1))
  1.000000e0 +0.000000e0j * (T(1,0))
 -1.000000e0 +0.000000e0j * (V(1))
 5.000000e-1 +0.000000e0j * (V(1) V(2))
  1.000000e0 +0.000000e0j * (T(1,2))
  1.000000e0 +0.000000e0j * (T(2,1))
 -1.000000e0 +0.000000e0j * (V(2))
 5.000000e-1 +0.000000e0j * (V(2) V(3))
  1.000000e0 +0.000000e0j * (T(2,3))
  1.000000e0 +0.000000e0j * (T(3,2))
-5.000000e-1 +0.000000e0j * (V(3))

The interior sites pick up a coefficient of \(-1\) on \(V_j\) because they appear in two bonds, whereas the boundary sites only appear in one. Every term listed here appears in the graph drawn above. The T(j,k) terms are its arrows, and the V(j) terms its nodes.

2. Partition into flow sets

Next, label each term with the flow set it belongs to. The groups attribute exists for this purpose. An Evolution gate over a grouped operator decomposes into one Evolution per group (step 6 puts this to work), so the grouping decided here at the fermionic level survives into the circuit.

For the 1D chain, the two hopping flow sets are the east-oriented arrows (\(T_{j,j+1}\)) and the west-oriented arrows (\(T_{j+1,j}\)). The diagonal interaction terms commute with everything diagonal and form a third group:

>>> def flow_set_groups(operator):
...     groups = []
...     for terms, _ in operator.iter_terms():
...         match terms:
...             case [(left, right)] if right == left + 1:
...                 groups.append(0)  # east-oriented: T_{j,j+1}
...             case [(left, right)] if right == left - 1:
...                 groups.append(1)  # west-oriented: T_{j+1,j}
...             case _:
...                 groups.append(2)  # diagonal interaction terms
...     return groups
>>>
>>> hamiltonian.groups = flow_set_groups(hamiltonian)
>>> hamiltonian.num_groups()
3
>>> for index, group in enumerate(hamiltonian.split_out_groups()):
...     print(index, sorted(terms for terms, _ in group.iter_terms()))
0 [[(0, 1)], [(1, 2)], [(2, 3)]]
1 [[(1, 0)], [(2, 1)], [(3, 2)]]
2 [[], [(0, 0)], [(0, 0), (1, 1)], [(1, 1)], [(1, 1), (2, 2)], [(2, 2)], [(2, 2), (3, 3)], [(3, 3)]]

Groups 0 and 1 are the two flow sets. Each set is a directed path along the chain, so by the flow property all terms within a group commute.

Each group also has to be Hermitian on its own, since a product formula exponentiates the groups separately and only a Hermitian factor has a unitary evolution. groups_are_hermitian() confirms it:

>>> from qiskit_fermions.operators.terms.grouping import groups_are_hermitian
>>>
>>> groups_are_hermitian(hamiltonian)
[True, True, True]

That is worth pausing on, because the two hopping groups are one-directional: group 0 holds only east-oriented terms and group 1 only west-oriented ones. Splitting a Hamiltonian that way would normally break Hermiticity, since \(a^\dagger_j a_k\) needs its conjugate partner \(a^\dagger_k a_j\) alongside it. A TransferVertexOperator avoids the problem because \(T_{jk}\) is already Hermitian on its own. It is a product of two Majorana operators (see its definition in step 1), not a bare \(a^\dagger_j a_k\), so its Jordan-Wigner image carries a real coefficient rather than an imaginary one. Choosing this operator representation is therefore what makes a one-directional flow set a legitimate Trotter factor at all.

Note

The east/west labels used throughout this guide are geometric, with the chain drawn left to right and mode indices increasing in that direction; \(T_{j,j+1}\) points east and \(T_{j+1,j}\) points west. Ref. [1] is internally inconsistent on this naming (its prose and its figures disagree) so this guide deliberately does not follow the prose, and instead keeps the labels from the picture. When cross-reading with the paper, match the flow sets by their Pauli weights (1 and 3 below), not by the compass words.

3. Write the custom encoding

Section IV B of Ref. [1] classifies the forms that a local fermion-to-qubit encoding can take when restricted to a flow set. Plain Jordan-Wigner uses \(N_q = N_f\) qubits and maps every hopping term to a weight-2 Pauli. The classification shows that spending extra qubits buys structure in the encoded operators.

The encoding implemented here is the parity-delocalized construction of Appendix B 2 (equations B4 and B5), which uses one ancilla qubit, so \(N_q = N_f + 1\). The fermionic parity is delocalized across a pair of qubits:

\[V_j = Z_j Z_{j+1} \, , \qquad T_{j,j+1} = -\tfrac{1}{2} X_{j+1} \, , \qquad T_{j+1,j} = +\tfrac{1}{2} Z_j X_{j+1} Z_{j+2} \, .\]

The index \(j+2\) in the last expression forces the extra qubit. The chain’s final bond has \(j = N_f - 2\), so its \(Z_{j+2}\) lands on qubit \(N_f\), one past the last fermionic mode \(N_f - 1\). That trailing qubit is the ancilla, and it is why \(N_q = N_f + 1\) rather than \(N_f\). The same reach shows up in \(V_j\), whose \(Z_{j+1}\) is on the ancilla for \(j = N_f - 1\).

The payoff is visible immediately; one whole flow set is mapped to a sum of weight-1 Paulis.

Note

The \(\tfrac{1}{2}\) prefactors are fixed by the normalization \(T_{jk}^2 = \tfrac{1}{4}\), and the relative minus sign between the two orientations is fixed by the product identity \(T_{j,j+1} = -V_j V_{j+1} T_{j+1,j}\), which the Paulis above satisfy. Getting either wrong yields an operator that obeys the commutation relations but no longer represents the same Hamiltonian, so you should verify the encoding numerically, as shown in step 4.

Writing the encoding means writing a function that maps a single generalized transfer operator to a Pauli string; map_transfer_vertex_generators() handles the iteration over terms and their composition:

>>> from qiskit.quantum_info import SparseObservable
>>> from qiskit_fermions.mappers import map_transfer_vertex_generators
>>>
>>> def flow_set_action(action, num_qubits):
...     match action:
...         case (j, k) if j == k:
...             # vertex operator: V_j = Z_j Z_{j+1}
...             return SparseObservable.from_sparse_list(
...                 [("ZZ", [j, j + 1], 1.0)], num_qubits=num_qubits
...             )
...         case (j, k) if k == j + 1:
...             # east-oriented transfer operator: weight 1
...             return SparseObservable.from_sparse_list(
...                 [("X", [k], -0.5)], num_qubits=num_qubits
...             )
...         case (j, k) if k == j - 1:
...             # west-oriented transfer operator: weight 3
...             return SparseObservable.from_sparse_list(
...                 [("ZXZ", [k, k + 1, k + 2], 0.5)], num_qubits=num_qubits
...             )
...         case _:
...             raise ValueError(f"not a nearest-neighbour transfer operator: {action}")
>>>
>>> def flow_set_encoding(operator, num_qubits):
...     return map_transfer_vertex_generators(
...         operator,
...         lambda action: flow_set_action(action, num_qubits),
...         identity=lambda: SparseObservable.identity(num_qubits),
...         compose=SparseObservable.compose,
...     ).simplify()

Important

The MapperFnEvolutionSynthesis.mapper_fn expects the signature (operator, num_qubits), and the return type must be a SparseObservable, which makes the function directly usable as a transpiler plugin. See step 6.

Applying it to the Hamiltonian from step 1 gives the encoded operator on \(N_f + 1 = 5\) qubits:

>>> num_qubits = num_sites + 1
>>> encoded = flow_set_encoding(hamiltonian, num_qubits)
>>> for label, indices, coeff in sorted(encoded.to_sparse_list()):
...     print(f"{label:3s} {str(indices):12s} {coeff.real:+.2f}")
    []           +1.50
X   [1]          -0.50
X   [2]          -0.50
X   [3]          -0.50
ZXZ [0, 1, 2]    +0.50
ZXZ [1, 2, 3]    +0.50
ZXZ [2, 3, 4]    +0.50
ZZ  [0, 1]       -0.50
ZZ  [0, 2]       +0.50
ZZ  [1, 2]       -1.00
ZZ  [1, 3]       +0.50
ZZ  [2, 3]       -1.00
ZZ  [2, 4]       +0.50
ZZ  [3, 4]       -0.50

There are 14 terms, in three shapes: the hopping has become X and ZXZ, the interaction ZZ, and the leading [] is the identity, contributing only a global phase. Note that the ZZ terms reach nearest and next-nearest neighbors; \(V_jV_{j+1}\) spans qubits \(j\) through \(j+2\), which is the cost of delocalizing the parity.

Grouping by flow set exposes the asymmetry the construction buys. List the Pauli weights present in each group:

>>> for index, group in enumerate(hamiltonian.split_out_groups()):
...     weights = {len(indices) for _, indices, _ in flow_set_encoding(group, num_qubits).to_sparse_list()}
...     print(index, sorted(weights))
0 [1]
1 [3]
2 [0, 2]

The east-oriented flow set (group 0) consists entirely of weight-1 Paulis. Its time evolution is therefore a layer of single-qubit rotations and needs no entangling gates, whereas under Jordan-Wigner every hopping term is weight-2 and requires them. This is the space-time trade-off of Ref. [1] in its simplest form: one extra qubit converts half of the hopping Hamiltonian into single-qubit rotations.

The west-oriented flow set (group 1) pays for it at weight three, and the interaction (group 2) sits at weight two, where the weight-zero entry is the identity. None of this is yet a circuit claim; what a synthesis makes of these weights is the subject of steps 6 and 7.

4. Verify the encoding

A custom encoding is only useful if it is faithful, and a hand-written one should be checked. Because this encoding uses \(N_f + 1\) qubits, the qubit Hilbert space is twice as large as the fermionic one, so the encoded Hamiltonian cannot equal the Jordan-Wigner one term by term. The two are related by an isometry instead.

Where the isometry comes from: Under Jordan-Wigner a basis state is the occupation string; qubit \(j\) holds \(n_j\). This encoding instead stores cumulative parities. Define

\[b_0 = 0 \, , \qquad b_{j+1} = n_0 \oplus n_1 \oplus \dots \oplus n_j \, ,\]

so bit \(b_{j+1}\) records the parity of all occupations up to and including site \(j\). There are \(N_f + 1\) such bits for \(N_f\) occupations, which is where the ancilla comes from. The occupation is recovered as the difference between neighboring bits, \(n_j = b_j \oplus b_{j+1}\). An occupied site therefore shows up as a domain wall between two adjacent bits, which is why this is called a domain-wall (or Kramers-Wannier) encoding. That is also why \(V_j = Z_j Z_{j+1}\): the product of two neighboring \(Z\)s reads off that difference.

Writing this map out for a few states makes the structure concrete (note that \(b_0 = 0\) is fixed, so only half of the \(2^{N_f+1}\) qubit states are in the image, and hence an isometry rather than a unitary):

>>> def domain_wall_bits(occupations):
...     parity = 0
...     bits = [0]
...     for occupation in occupations:
...         parity ^= occupation
...         bits.append(parity)
...     return bits
>>>
>>> for occupations in ([0, 0, 0, 0], [1, 0, 0, 0], [1, 1, 0, 0], [1, 0, 1, 0]):
...     bits = domain_wall_bits(occupations)
...     # little-endian: reversed() prints qubit 0 on the right, as Qiskit labels do
...     print("".join(map(str, occupations)), "->", "".join(str(b) for b in reversed(bits)))
0000 -> 00000
1000 -> 11110
1100 -> 00010
1010 -> 00110

A single fermion on site 0 flips every cumulative parity above it, which is the delocalization at work. Collecting these columns into a matrix gives the isometry \(W\), and the encoding is faithful when it intertwines the two Hamiltonians:

\[\hat{H}_{\text{flow set}} \, W = W \, \hat{H}_{\text{JW}} \, .\]

That is, mapping a fermionic state into the qubit space and then evolving it there must give the same result as evolving it in the fermionic space first and mapping afterward.

>>> import numpy as np
>>> from qiskit.quantum_info import SparsePauliOp
>>> from qiskit_fermions.mappers.library import transfer_vertex_jordan_wigner
>>>
>>> def to_matrix(observable):
...     # SparseObservable carries no dense-matrix method, so route through
...     # SparsePauliOp. This is only ever needed for the checks below --
...     # the encoding itself never leaves SparseObservable.
...     return SparsePauliOp.from_sparse_observable(observable).to_matrix()
>>>
>>> def domain_wall_isometry(num_sites):
...     isometry = np.zeros((2 ** (num_sites + 1), 2**num_sites), dtype=complex)
...     for index in range(2**num_sites):
...         occupations = [(index >> j) & 1 for j in range(num_sites)]
...         bits = domain_wall_bits(occupations)
...         isometry[sum(b << j for j, b in enumerate(bits)), index] = 1.0
...     return isometry
>>>
>>> isometry = domain_wall_isometry(num_sites)
>>> np.allclose(isometry.conj().T @ isometry, np.eye(2**num_sites))
True
>>>
>>> def intertwines(operator):
...     """Whether both mappings of `operator` agree through the isometry."""
...     flow = to_matrix(flow_set_encoding(operator, num_qubits))
...     reference = to_matrix(transfer_vertex_jordan_wigner(operator, num_sites).simplify())
...     return np.allclose(flow @ isometry, isometry @ reference)
>>>
>>> intertwines(hamiltonian)
True
>>> # and, more strongly, once per flow set: a product formula evolves the groups
>>> # separately, so each one has to be intertwined on its own
>>> all(intertwines(group) for group in hamiltonian.split_out_groups())
True

The intertwining relation holds exactly, and separately for each flow set. That second, stronger statement is what later steps rely on: a product formula evolves the groups one at a time, and a product of intertwined factors is itself intertwined, so any approximation built from these groups agrees between the two encodings even though the encodings differ. As a corollary, the spectra must agree, with every Jordan-Wigner eigenvalue appearing twice in the larger space, once for each value of the unconstrained global parity:

>>> jw_matrix = to_matrix(transfer_vertex_jordan_wigner(hamiltonian, num_sites).simplify())
>>> flow_matrix = to_matrix(flow_set_encoding(hamiltonian, num_qubits))
>>>
>>> jw_spectrum = np.linalg.eigvalsh(jw_matrix)
>>> flow_spectrum = np.linalg.eigvalsh(flow_matrix)
>>> np.allclose(
...     np.sort(flow_spectrum),
...     np.sort(np.concatenate([jw_spectrum, jw_spectrum])),
... )
True
>>> print(f"{jw_spectrum[0]:.10f}  {flow_spectrum[0]:.10f}")
-1.8557725066  -1.8557725066

5. Build the fermionic circuit

Before involving any qubits, the dynamics are expressed on the fermionic level. A FermionicCircuit acts on fermionic modes rather than qubits, and an Evolution gate over the Hamiltonian is the whole circuit:

>>> from qiskit_fermions.circuit import FermionicCircuit
>>> from qiskit_fermions.circuit.library import Evolution
>>> from qiskit_fermions.circuit.library.synthesis import FermionicLieTrotter
>>>
>>> total_time = 1.0
>>> circuit = FermionicCircuit(num_sites)
>>> circuit.append(
...     Evolution(
...         num_sites, hamiltonian, time=total_time, synthesis=FermionicLieTrotter()
...     ),
...     circuit.modes,
... )
>>> circuit.draw("mpl")
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

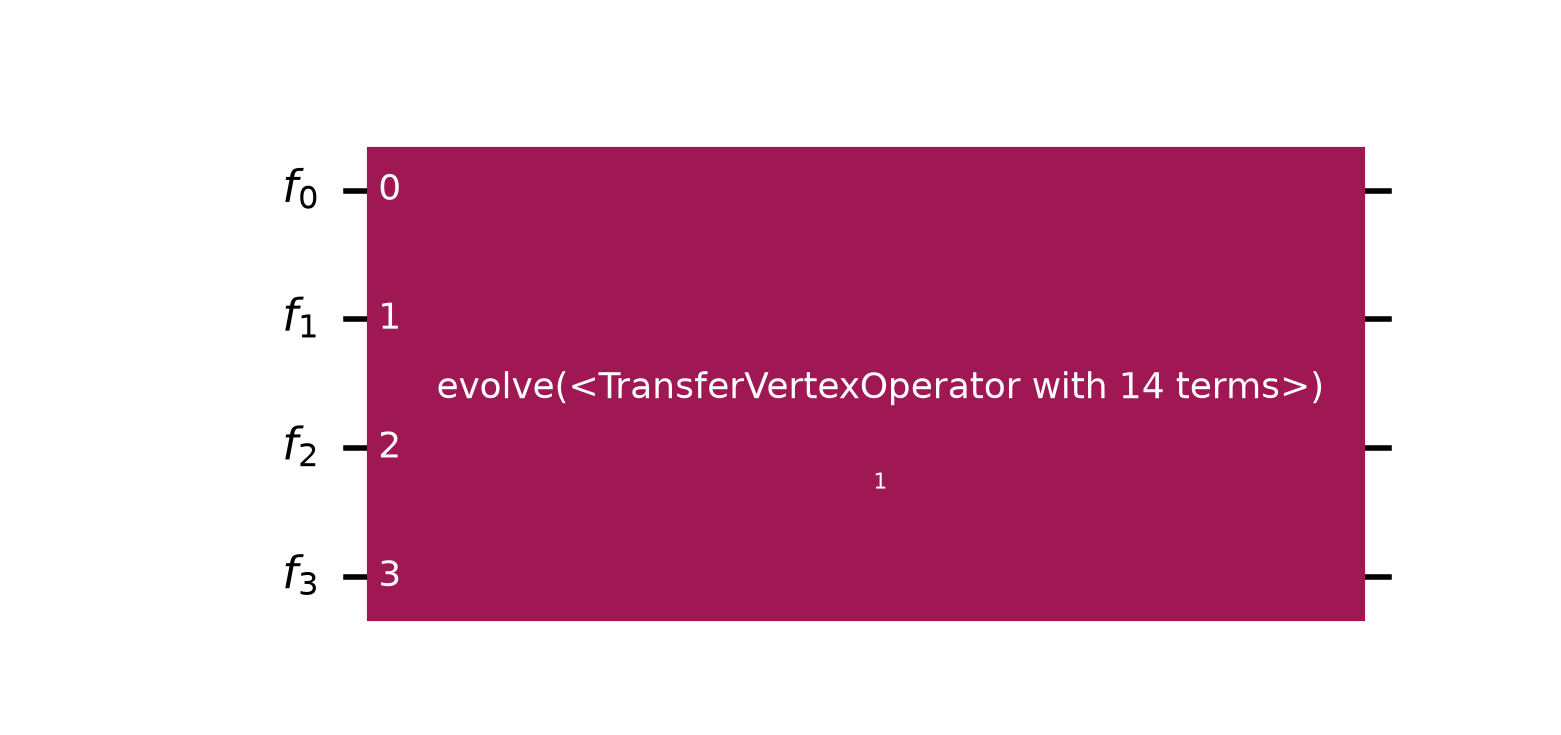

There is one opaque box over all four modes, and the interesting part is what it decomposes into. The synthesis argument says how: FermionicLieTrotter is the first-order product formula, which splits the operator by its groups and evolves each group in turn. So the flow-set partitioning from step 2 is the Trotterization, and a single decompose() performs it, giving one Evolution per flow set in group order: east, west, then the diagonal interaction, carrying 3, 3, and 8 terms respectively.

>>> flow_set_circuit = circuit.decompose()

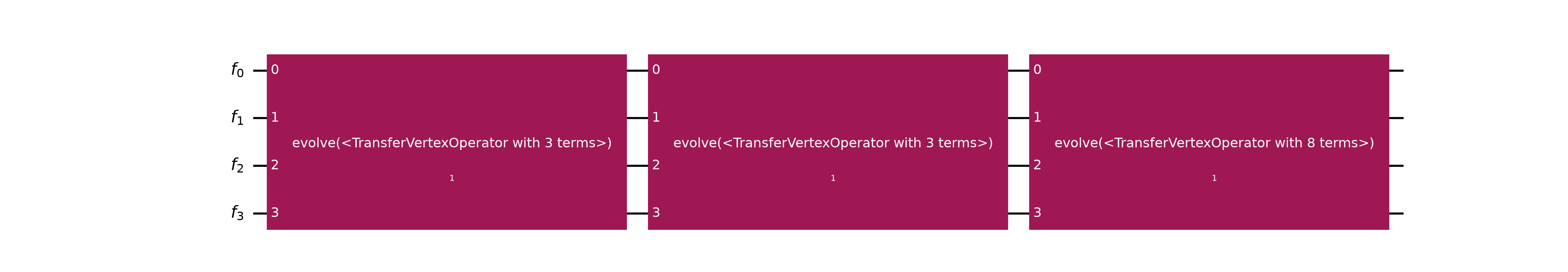

>>> flow_set_circuit.draw("mpl")
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

Note that this happens entirely in fermionic space: no qubit has been mentioned yet, and the approximation is already made. The number of Trotter steps therefore belongs here too, as reps, which divides the time and repeats the whole sweep:

>>> def trotter_steps(reps):
...     step = FermionicCircuit(num_sites)
...     step.append(
...         Evolution(
...             num_sites,
...             hamiltonian,
...             time=total_time,
...             synthesis=FermionicLieTrotter(reps=reps),
...         ),
...         step.modes,
...     )
...     return step.decompose()
>>>
>>> trotter_steps(3).count_ops()["Evolution"]
9

Nine gates: the three flow sets, cycled through three times at a third of the time each. That cycling is what makes it a Trotterization rather than a re-slicing of one group. Repeating a single group would achieve nothing, since consecutive exponentials of the same operator commute, so A(t/3) A(t/3) A(t/3) is just A(t). A formula that reads the groups can interleave them; one applied after the mapping cannot, because the grouping is gone by then.

This is the step that makes the grouping matter. Each emitted gate is mapped and synthesized independently, so everything downstream acts on the partitioning decided at the fermionic level. Skipping the decomposition hands the whole operator to the next stage instead, and the grouping is ignored.

6. Transpile with the custom encoding

The encoding is now ready to be used by the transpiler. Two more pieces are needed:

• A layout. The default TrivialF2QLayout assumes one qubit per mode, which is wrong in this situation. CustomF2QLayout associates the fermionic register with a QuantumRegister of a different size, which is how ancilla qubits enter the pipeline.

• A synthesis plugin. MapperFnEvolutionSynthesis takes the mapper function directly, maps the Evolution gate’s Hamiltonian with it, and emits a PauliEvolutionGate, preserving the \(e^{-itH}\) convention. Its product_formula decides how that gate is turned into rotations. Note that this is a second, independent product formula, acting on qubits after the mapping: Qiskit’s LieTrotter is passed here, and step 7 replaces it with one that knows about flow sets.

Since every comparison below reruns this pipeline, it is worth wrapping once:

>>> from qiskit.circuit import QuantumRegister
>>> from qiskit.passmanager import MultiStagePassManager
>>> from qiskit_fermions.transpiler import FermionicCircuitToDAG, QuantumDAGToCircuit
>>> from qiskit_fermions.transpiler.passes import (
...     CustomF2QLayout,
...     F2QSynthesis,
...     MapperFnEvolutionSynthesis,
... )
>>>
>>> def flow_set_pass_manager(mode_register, product_formula=None):
...     '''Build the pipeline mapping `mode_register` with the flow-set encoding.'''
...     synthesis = F2QSynthesis()
...     synthesis.methods["Evolution"] = MapperFnEvolutionSynthesis(
...         flow_set_encoding, product_formula=product_formula
...     )
...     # this encoding spends one ancilla on top of the fermionic modes
...     qubit_register = QuantumRegister(mode_register.size + 1, "q")
...     return MultiStagePassManager(
...         input=FermionicCircuitToDAG(),
...         layout=CustomF2QLayout({mode_register: qubit_register}),
...         synthesis=synthesis,
...         output=QuantumDAGToCircuit(),
...     )
>>>
>>> from qiskit.synthesis import LieTrotter
>>>
>>> pass_manager = flow_set_pass_manager(flow_set_circuit.register, LieTrotter())
>>> qubit_circuit = pass_manager.run(flow_set_circuit)
>>> qubit_circuit.num_qubits
5

Four fermionic modes have become a five-qubit circuit, with the ancilla supplied by the custom layout.

Now look at what the resulting circuit actually contains. Decomposing repeatedly reduces the evolution gates all the way down to U and CX, so that the two-qubit cost of the two synthesis strategies compared below is measured in the same currency: count_ops() then reports the CX count, and depth() takes a filter function to measure the two-qubit depth. Note that this reps is a decomposition depth, unrelated to the number of Trotter steps a product formula takes, which also goes by reps later in this guide:

>>> decomposed = qubit_circuit.decompose(reps=6)
>>> decomposed.count_ops()["cx"]
26
>>> decomposed.depth(lambda instruction: len(instruction.qubits) == 2)
23

Twenty-six CX gates in twenty-three layers, so almost nothing runs in parallel. Drawing the circuit shows why:

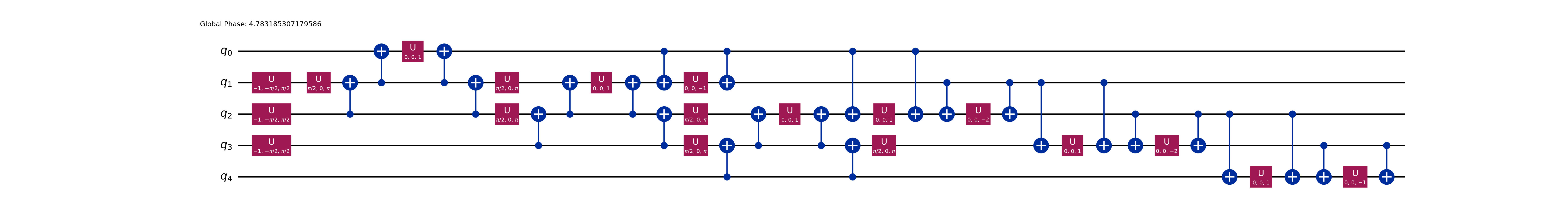

>>> decomposed.draw("mpl", fold=-1)
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

Every term has been compiled in isolation: a basis change, a CX ladder down to a single rotation, then the ladder is undone. The weight-1 flow set is free; its terms are lone rotations with no ladder around them, but each weight-3 term pays for four CXgates, and because the ladders are emitted sequentially, nothing overlaps.

So the grouping survives the whole pipeline (three flow sets, three mapped PauliEvolutionGates) and still buys almost nothing. The fermionic Trotterization of step 5 did its job; what wastes it is the qubit-side formula. LieTrotter receives a set of terms it happens to be told nothing about, and compiles each in isolation. It cannot know they mutually commute, so it serializes what could share a basis change.

That is the gap this encoding exists to close: two product formulas are at work, and only the fermionic one has been given the structure so far. The next step supplies a qubit-side synthesis that exploits it too.

7. A flow-set-aware synthesis

Recovering the advantage means telling the qubit-side synthesis about the structure. This is Section IV C of Ref. [1]: because all terms of a flow set commute, they can be simultaneously diagonalized by a single Clifford circuit, rotated in one shared basis and rotated back, instead of once per term.

For this encoding, the Clifford is simple. Conjugating by a chain of CZ gates on nearest neighbors maps

\[X_{j+1} \; \longmapsto \; Z_j X_{j+1} Z_{j+2}\]

simultaneously for every \(j\). One CZ chain turns the entire weight-3 (west) flow set into a layer of independent single-qubit \(X\) rotations. The EvolutionSynthesis interface only requests a synthesize() method, which is all this class implements. It carries no number of Trotter steps, because it receives one flow set at a time and so cannot subdivide the evolution across the sets. That subdivision belongs a level up, in fermionic space, where a FermionicEvolutionSynthesis sees all of them at once (see step 9):

>>> from qiskit.circuit import QuantumCircuit
>>> from qiskit.synthesis.evolution import EvolutionSynthesis
>>>
>>> def cz_brickwork(circuit):
...     # emit even and odd bonds as two layers, so the CZs are scheduled in
...     # parallel: a chain of overlapping CZs has depth 2, not num_qubits - 1
...     #
...     # NOTE: CZ gates are diagonal, so they all commute and each is its own inverse.
...     # This whole layer is therefore self-inverse, which is why the conjugation below
...     # calls it twice rather than calling it and then its inverse.
...     for offset in (0, 1):
...         for j in range(offset, circuit.num_qubits - 1, 2):
...             circuit.cz(j, j + 1)
>>>
>>> # The interaction reaches nearest (distance 1) and next-nearest (distance 2)
>>> # neighbors, so every interior qubit carries four Rzz gates and can only do one at
>>> # a time: four layers is the best any schedule can do. These offsets achieve it.
>>> def rzz_layers(circuit, angles):
...     """Emit the diagonal Rzz gates in four layers of disjoint qubit pairs."""
...     near = [(j, k) for j, k in angles if k - j == 1]
...     far = [(j, k) for j, k in angles if k - j == 2]
...     schedule = [
...         [(j, k) for j, k in near if j % 2 == 0],
...         [(j, k) for j, k in far if j % 4 in (0, 1)],
...         [(j, k) for j, k in near if j % 2 == 1],
...         [(j, k) for j, k in far if j % 4 in (2, 3)],
...     ]
...     # emit layer by layer, since Qiskit's depth follows the order gates were added
...     for layer in schedule:
...         for j, k in layer:
...             circuit.rzz(angles[j, k], j, k)
>>>
>>> class FlowSetSynthesis(EvolutionSynthesis):
...     '''Synthesize one flow set of the encoded Hamiltonian at a time.'''
...
...     preserve_order = True
...
...     def synthesize(self, evolution):
...         circuit = QuantumCircuit(evolution.operator.num_qubits)
...         east, west, diagonal = [], [], {}
...
...         for label, indices, coeff in evolution.operator.to_sparse_list():
...             angle = 2 * evolution.time * coeff.real
...             match label, indices:
...                 case "", _:  # the identity contributes only a global phase
...                     circuit.global_phase -= angle / 2
...                 case "X", [qubit]:  # east flow set: already weight-1
...                     east.append((qubit, angle))
...                 case "ZXZ", [j, k, l] if (k, l) == (j + 1, j + 2):
...                     west.append((k, angle))  # needs the CZ conjugation below
...                 case "ZZ", [j, k]:  # interaction: diagonal, see rzz_layers above
...                     diagonal[min(j, k), max(j, k)] = angle
...                 case _:
...                     raise ValueError(f"unexpected Pauli term: {label} on {indices}")
...
...         # east flow set: bare rotations, no entangling gates at all
...         for qubit, angle in east:
...             circuit.rx(angle, qubit)
...
...         # west flow set: one CZ chain diagonalizes the WHOLE set at once
...         if west:
...             cz_brickwork(circuit)
...             for qubit, angle in west:
...                 circuit.rx(angle, qubit)
...             cz_brickwork(circuit)
...
...         if diagonal:
...             rzz_layers(circuit, diagonal)
...
...         return circuit

Note

Two details are easy to miss. A custom EvolutionSynthesis must expose a preserve_order attribute, which the high-level-synthesis pass reads.

Both helpers emit their gates in explicit layers rather than in term order, because depth() schedules gates as soon as possible, in the order they were added. Since all the gates within one of these sets commute, the order is free to choose. A term-by-term synthesis chooses the order badly. Emitting the overlapping CZ chain sequentially reports a depth that grows with the qubit count rather than the constant 2 the hardware could achieve.

Note

This is why the synthesis above carries no number of Trotter steps. It receives one flow set per gate, so a repetition inside it would repeat within a set rather than cycling between them:

repeating within one set:      A(t/2) A(t/2) B(t/2) B(t/2)
what a Trotterization needs:   A(t/2) B(t/2) A(t/2) B(t/2)

The first form buys nothing: consecutive exponentials of the same operator commute, so A(t/2) A(t/2) is just A(t) and the error stays at its one-step value however many steps are asked for.

The step count therefore belongs to the fermionic FermionicLieTrotter of step 5, which reads the groups and can interleave them. That division of labor is the point: the fermionic formula decides how many steps and in what order, and this class decides how cheaply each resulting set is realized.

To select the order, pass it to MapperFnEvolutionSynthesis.product_formula, which is the argument flow_set_pass_manager takes. Nothing else about the pipeline (or the fermionic circuit it runs on) changes:

>>> pass_manager = flow_set_pass_manager(flow_set_circuit.register, FlowSetSynthesis())
>>>
>>> flow_circuit = pass_manager.run(flow_set_circuit).decompose(reps=6)
>>> flow_circuit.count_ops()["cx"]
22
>>> flow_circuit.depth(lambda instruction: len(instruction.qubits) == 2)
12

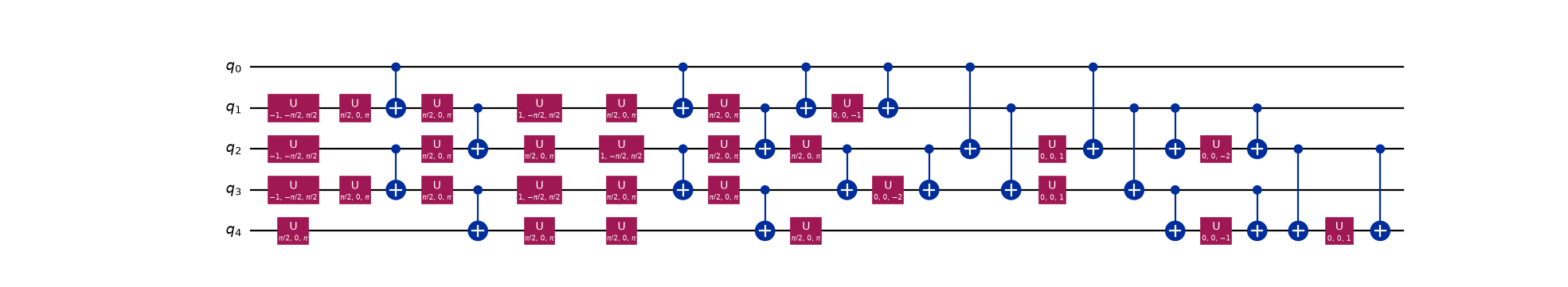

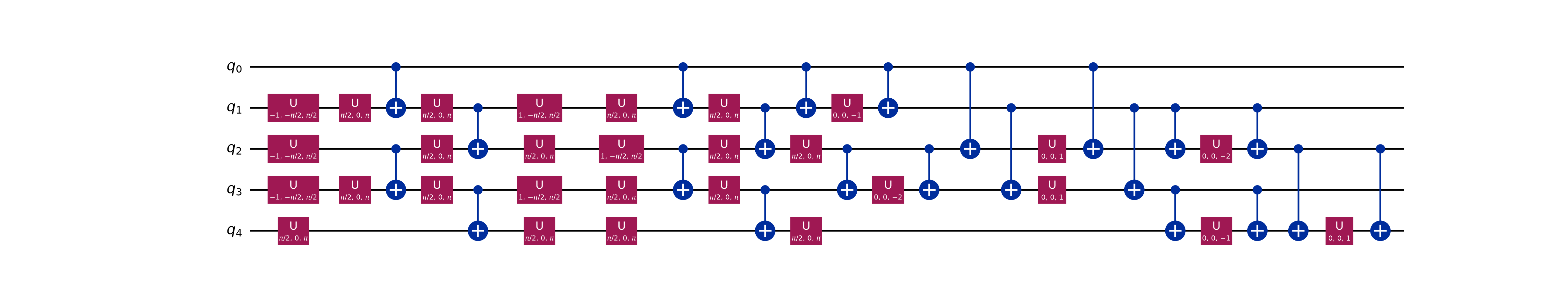

>>> flow_circuit.draw("mpl", fold=-1)
<Figure size ... with 1 Axes>

(png, hires.png, pdf)

From depth 23 with 26 CX gates down to depth 12 with 22 CX gates. Note that this is fewer entangling gates and nearly half the depth. Comparing the two pictures, the difference is not that the gates are cheaper but that they stack. The serial ladders are gone; entangling gates now sit above one another in shared layers because the whole west flow set is rotated in a single shared basis and the interaction is emitted in layers of disjoint pairs.

Note

FlowSetSynthesis pattern-matches absolute qubit indices, which is safe here only because every flow set of this Hamiltonian spans the whole register. A fermionic product formula narrows each factor to the modes it actually touches, so a grouping whose sets covered only part of the chain would arrive relabeled and the patterns above would not match.

Note

Both drawings show the circuit after decompose(reps=6), which rewrites everything into the U and CX basis, so the CZ, Rx, and Rzz gates emitted by FlowSetSynthesis are not visible as such. That is deliberate: it puts both circuits in the same basis, which is the only way the two-qubit counts and depths above are comparable. It is the layer structure that is notable in these figures, not the gate labels.

8. Constant depth at scale

The interesting question is not the count at four modes but how it scales. The two CZ brickwork layers do not grow with the chain length, so the two-qubit depth of one Trotter step should be constant. Measuring it directly on the full Fermi-Hubbard Hamiltonian, well past what could be simulated by brute force:

>>> def evolution_stats(num_sites, product_formula):
...     operator = fermi_hubbard_1d(num_sites, tunneling=1.0, interaction=2.0)
...     operator.groups = flow_set_groups(operator)
...
...     circuit = FermionicCircuit(num_sites)
...     circuit.append(
...         Evolution(
...             num_sites, operator, time=total_time, synthesis=FermionicLieTrotter()
...         ),
...         circuit.modes,
...     )
...     circuit = circuit.decompose()  # one Evolution per flow set, as in step 5
...
...     pass_manager = flow_set_pass_manager(circuit.register, product_formula)
...     decomposed = pass_manager.run(circuit).decompose(reps=6)
...     two_qubit = lambda instruction: len(instruction.qubits) == 2
...     return decomposed.count_ops()["cx"], decomposed.depth(two_qubit)
>>>
>>> sites = [4, 10, 20, 50, 100]
>>> flow = [evolution_stats(n, FlowSetSynthesis()) for n in sites]
>>> lie_trotter = [evolution_stats(n, LieTrotter()) for n in sites]
>>>
>>> [depth for _, depth in flow]
[12, 12, 12, 12, 12]
>>> [depth for _, depth in lie_trotter]
[23, 47, 87, 207, 407]

The two-qubit depth stays at 12 from four modes to 100, while LieTrotter grows linearly to 407. The flow sets let it parallelize a little within the pipeline, but each set is still Trotterized term by term, so the growth is only slowed, not removed:

>>> import matplotlib.pyplot as plt
>>>
>>> figure, axes = plt.subplots(1, 2, figsize=(9, 3.5), layout="constrained")
>>> for panel, index, title in zip(axes, (1, 0), ("two-qubit depth", "CX count")):
...     _ = panel.plot(sites, [stat[index] for stat in lie_trotter], "o-", label="qubit-level")
...     _ = panel.plot(sites, [stat[index] for stat in flow], "s-", label="flow set")
...     _ = panel.set(xlabel="modes", title=title)
...     _ = panel.legend()

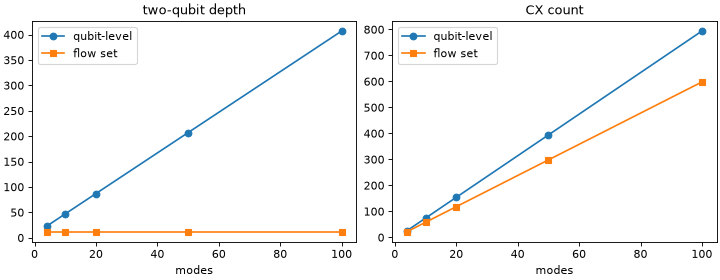

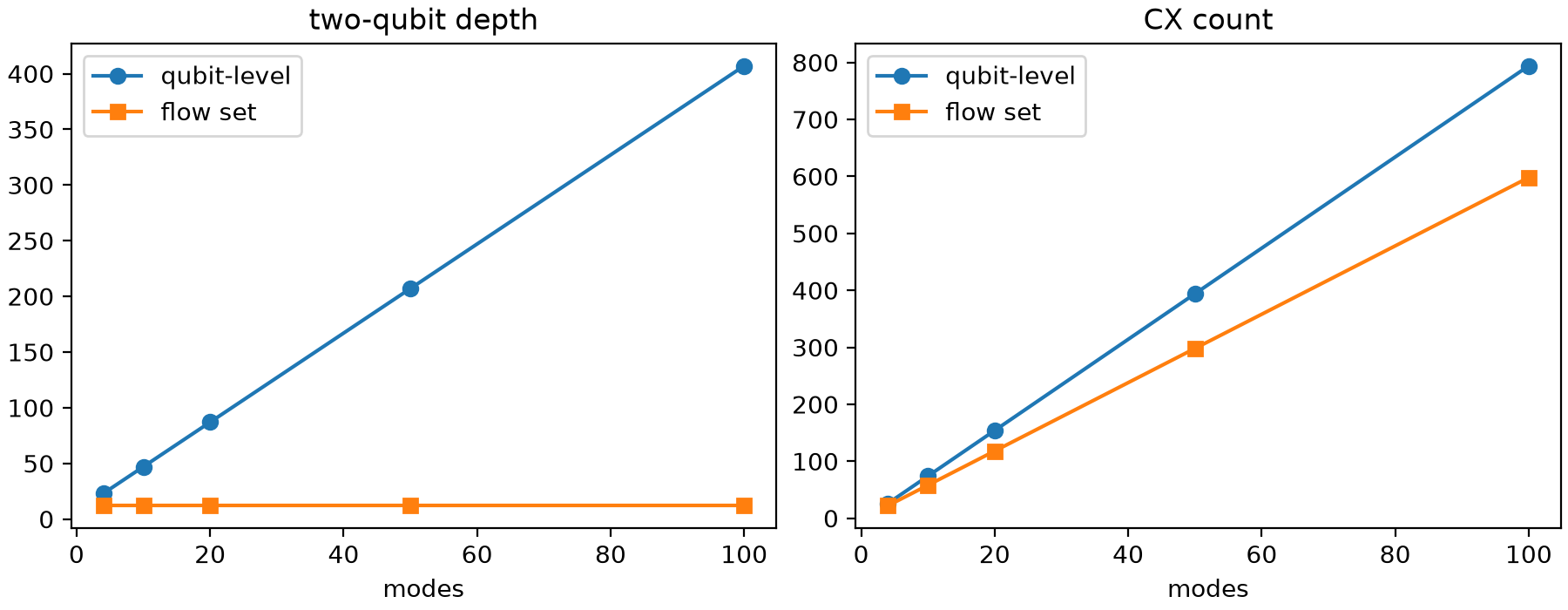

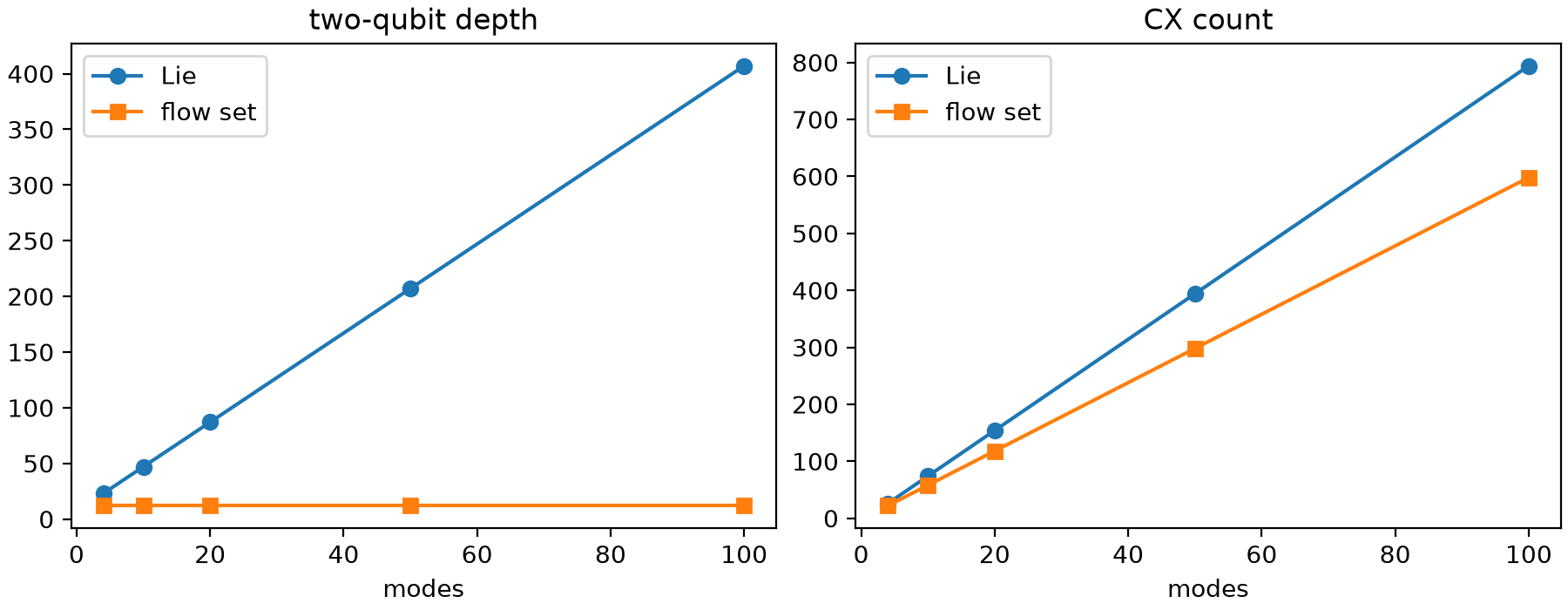

>>> figure
<Figure size ... with 2 Axes>

(png, hires.png, pdf)

The gate count grows linearly under both (there are \(O(N)\) terms to apply, and that is unavoidable), but the flow-set synthesis applies them in a constant number of parallel layers. This is the constant-depth result of Ref. [1].

Note

The depth 12 splits across the three flow sets as 0 + 4 + 8, at every chain length. The east flow set contributes zero; it is bare Rx rotations. The west flow set costs 4, from the two CZ brickwork layers going in and the two coming out; dropping the interaction leaves a two-qubit depth of four at any chain length. The remaining eight is the interaction whose Rzz terms act on both nearest and next-nearest neighbors and so need four disjoint layers, each costing two CXgates. Four is optimal here: every interior qubit carries four Rzz gates (two to each neighbor and two to each next-nearest one) and can only take part in one at a time, so no schedule can do better.

Two thirds of the depth is the interaction, which shows that this encoding excels at the hopping, and thus at the dynamics of a free-fermion chain. However, note that the interaction does not commute with the hopping. Leaving it out is not an approximation to Fermi-Hubbard but a different model. Where the balance falls for a given problem is worth exploring.

9. Check the dynamics

Under the domain-wall map, an occupation pattern becomes a cumulative-parity string, so the initial state is prepared differently than under Jordan-Wigner. This is an easily overlooked practical consequence of delocalizing the parity. The helper from step 4 gives the right label:

>>> occupations = [1, 0, 1, 0]
>>> initial_label = "".join(str(b) for b in reversed(domain_wall_bits(occupations)))
>>> initial_label
'00110'

With the state prepared, two questions remain, and they are best asked separately: does the flow-set synthesis compute the right thing, and does it compute it more cheaply?

Take correctness first. FlowSetSynthesis and Qiskit’s LieTrotter receive the same encoded flow sets from the same fermionic Trotterization, so they must realize the same unitary up to a global phase. The custom Cliffords reorganize the work; they do not change the result. Random statevectors detect any discrepancy far more cheaply than building the full unitary:

>>> from qiskit.quantum_info import Statevector
>>>
>>> rng = np.random.default_rng(1234)
>>>
>>> def agrees_up_to_one_phase(reps, samples=3):
...     """Compare both qubit-side syntheses of the same fermionic Trotterization."""
...     step = trotter_steps(reps)
...     trotter = flow_set_pass_manager(step.register, LieTrotter()).run(step)
...     flow = flow_set_pass_manager(step.register, FlowSetSynthesis()).run(step)
...     trotter, flow = trotter.decompose(reps=6), flow.decompose(reps=6)
...     dimension = 2**trotter.num_qubits
...     residuals, phases = [], []
...     for _ in range(samples):
...         vector = rng.normal(size=dimension) + 1j * rng.normal(size=dimension)
...         state = Statevector(vector / np.linalg.norm(vector))
...         a = state.evolve(trotter).data
...         b = state.evolve(flow).data
...         overlap = np.vdot(a, b)
...         phases.append(overlap / abs(overlap))
...         residuals.append(np.linalg.norm(b - a * overlap / abs(overlap)))
...     # the SAME global phase must work for every input state
...     spread = max(abs(phase - phases[0]) for phase in phases)
...     return bool(max(residuals) < 1e-9), bool(spread < 1e-9)
>>>
>>> [agrees_up_to_one_phase(reps) for reps in (1, 3)]
[(True, True), (True, True)]

Note

Both halves of that check matter. A unit-modulus overlap on a single state is necessary but not sufficient: a synthesis that got a state-dependent phase wrong would still show it. Requiring the same phase across several random states is what closes the gap. Checking more than one reps matters too, since it confirms the agreement survives the interleaving of the flow sets rather than holding only for a single sweep.

So the choice of qubit-side synthesis is free of consequence for accuracy, which is what makes a cost comparison meaningful. The remaining question is what the encoding as a whole buys against the obvious alternative: plain Jordan-Wigner on num_sites qubits, with no ancilla and no custom Cliffords. Both the encoding and the qubit-side synthesis differ between the two columns, but the check above showed the latter cannot affect the result, so what the fidelities test is the encoding. Both pipelines also start from the same fermionic Trotterization, so any difference in fidelity would indicate a bug rather than a trade-off. The two columns are the encodings, flow-set against Jordan-Wigner:

>>> def jordan_wigner_pass_manager(mode_register, product_formula):
...     """The same pipeline under plain Jordan-Wigner: one qubit per mode."""
...     synthesis = F2QSynthesis()
...     synthesis.methods["Evolution"] = MapperFnEvolutionSynthesis(
...         transfer_vertex_jordan_wigner, product_formula=product_formula
...     )
...     qubit_register = QuantumRegister(mode_register.size, "q")
...     return MultiStagePassManager(
...         input=FermionicCircuitToDAG(),
...         layout=CustomF2QLayout({mode_register: qubit_register}),
...         synthesis=synthesis,
...         output=QuantumDAGToCircuit(),
...     )
>>>
>>> from scipy.linalg import expm
>>>
>>> jw_state = np.zeros(2**num_sites, dtype=complex)
>>> jw_state[sum(o << j for j, o in enumerate(occupations))] = 1.0
>>> reference_jw = expm(-1j * total_time * jw_matrix) @ jw_state
>>> reference_flow = expm(-1j * total_time * flow_matrix) @ (isometry @ jw_state)
>>>
>>> def cost_and_fidelity(reps):
...     step = trotter_steps(reps)
...     flow = flow_set_pass_manager(step.register, FlowSetSynthesis()).run(step)
...     jw = jordan_wigner_pass_manager(step.register, LieTrotter()).run(step)
...     flow, jw = flow.decompose(reps=6), jw.decompose(reps=6)
...     two_qubit = lambda instruction: len(instruction.qubits) == 2
...     evolved_flow = Statevector.from_label(initial_label).evolve(flow).data
...     evolved_jw = Statevector(jw_state).evolve(jw).data
...     return (
...         abs(np.vdot(evolved_flow, reference_flow)) ** 2,
...         flow.count_ops()["cx"],
...         flow.depth(two_qubit),
...         abs(np.vdot(evolved_jw, reference_jw)) ** 2,
...         jw.count_ops()["cx"],
...         jw.depth(two_qubit),
...     )
>>>
>>> for reps in (1, 2, 4, 8):
...     flow_f, flow_cx, flow_d, jw_f, jw_cx, jw_d = cost_and_fidelity(reps)
...     print(
...         f"{reps} step(s):  flow set {flow_f:.6f}"
...         f" ({flow_cx:3d} CX, depth {flow_d:3d})"
...         f"   JW {jw_f:.6f} ({jw_cx:3d} CX, depth {jw_d:3d})"
...     )
1 step(s):  flow set 0.590661 ( 22 CX, depth  12)   JW 0.590661 ( 18 CX, depth  14)
2 step(s):  flow set 0.926656 ( 44 CX, depth  24)   JW 0.926656 ( 36 CX, depth  26)
4 step(s):  flow set 0.982053 ( 88 CX, depth  48)   JW 0.982053 ( 72 CX, depth  50)
8 step(s):  flow set 0.995395 (176 CX, depth  96)   JW 0.995395 (144 CX, depth  98)

Read the fidelity column first: identical, to every printed digit, in two different Hilbert spaces under two different encodings. That is the fermionic Trotterization showing through. The approximation was fixed in step 5, before either encoding was chosen, so both circuits carry exactly the error of a first-order formula over three flow sets, and it falls roughly four-fold per doubling of the step count.

What the encodings do differ in is cost, and the trade is worth stating plainly. The flow set spends more entangling gates: 22 against 18 at one step. The ancilla is not the reason, since it carries no two-qubit gate of its own. The reason is the interaction, exactly as step 3 warned: delocalizing the parity turns three nearest-neighbor ZZ terms into seven spanning nearest and next-nearest neighbors, and each costs two CX gates. That is the price paid for making the hopping cheap.

It also wins only narrowly on depth at this size (12 against 14), because four modes is too small for the asymptotics to show. The point is the scaling measured in step 8: that depth of 12 is constant, while the Jordan-Wigner depth grows with the chain. At 14 modes it is already 12 against 34.

Warning

The decompose() calls above are essential, for two independent reasons.

evolve() and Operator use a PauliEvolutionGate’s exact definition, bypassing a custom qubit-side synthesis. Verifying against an un-decomposed circuit reports perfect fidelity even for a deliberately wrong synthesis.

The same applies one level up, to the fermionic synthesis. An Evolution gate that is never decomposed goes to the fermion-to-qubit stage whole, which maps it without consulting Evolution.synthesis at all, so reps would silently have no effect. trotter_steps from step 5 performs that decomposition; a pipeline that sets the method with FermionicTrotterization gets the same expansion from the pass instead.

As a final cross-check, the site densities \(\langle n_j(t) \rangle = (1 - \langle V_j \rangle)/2\) computed in the encoded space must reproduce the Jordan-Wigner result. This check is about the encoding, not the circuit, so no Trotter approximation enters it. Both time evolutions are computed exactly, by matrix exponentiation of the respective Hamiltonians. Any discrepancy would therefore point at the encoding rather than a product formula:

>>> time = 0.8
>>> state_jw = np.zeros(2**num_sites, dtype=complex)
>>> state_jw[sum(o << j for j, o in enumerate(occupations))] = 1.0
>>> evolved_jw = expm(-1j * time * jw_matrix) @ state_jw
>>> evolved_flow = expm(-1j * time * flow_matrix) @ (isometry @ state_jw)
>>>
>>> for j in range(num_sites):
...     v_flow = to_matrix(
...         SparseObservable.from_sparse_list([("ZZ", [j, j + 1], 1.0)], num_qubits)
...     )
...     v_jw = to_matrix(SparseObservable.from_sparse_list([("Z", [j], 1.0)], num_sites))
...     density_flow = (1 - np.vdot(evolved_flow, v_flow @ evolved_flow).real) / 2
...     density_jw = (1 - np.vdot(evolved_jw, v_jw @ evolved_jw).real) / 2
...     print(f"site {j}:  {density_flow:.10f}  {density_jw:.10f}")
site 0:  0.6507935456  0.6507935456
site 1:  0.5963201678  0.5963201678
site 2:  0.3365016619  0.3365016619
site 3:  0.4163846247  0.4163846247

The densities agree to ten decimal places.

What to take away

• Group before mapping. Flow sets are defined on the directed fermionic interaction graph, so the grouping is chosen while problem structure is still available. The groups attribute carries it into the circuit, where a single decompose() turns it into one Evolution gate per flow set.

• Ancillas buy structure. Spending one extra qubit turns an entire flow set into weight-1 Paulis, whose evolution needs no entangling gates. Ref. [1] observes this trade-off generally. Larger qubit-to-fermion ratios admit shallower evolution circuits.

• A custom encoding is one function. Map a single generalized transfer operator to a Pauli string; map_transfer_vertex_generators() and MapperFnEvolutionSynthesis do the rest.

• The mapping and the grouping alone are not enough. Splitting the evolution per flow set only slowed the linear growth in depth; a term-by-term synthesis of each set still threw away the fact that its terms commute. Only supplying a flow-set-aware EvolutionSynthesis made the depth constant. Custom encodings, grouping, and custom synthesis are complementary: all three are needed.

• Two product formulas, two jobs. FermionicLieTrotter fixes the approximation in fermionic space, where the grouping is still visible, so it alone sets the Trotter error and the step count. The qubit-side EvolutionSynthesis then decides only how cheaply each set is realized: step 9 confirms both choices give the same unitary. Separating the two is what lets the accuracy and the cost be tuned independently. See Synthesize an Evolution gate in fermionic space.

• Verify it. An encoding that satisfies the commutation relations might still represent a different Hamiltonian if a prefactor or sign is off. Checking an intertwining relation (or, more cheaply, the spectrum) catches this.

Note

The FlowSetSynthesis above is deliberately written for this encoding on a 1D chain. It pattern-matches the specific Pauli labels the encoding produces and raises on anything else, rather than silently falling back to a generic product formula. A general implementation has two halves. Reading the flow-set structure from the operator’s groups is what a FermionicEvolutionSynthesis already does. Deriving the diagonalizing Clifford from the stabilizer group, as described in Section IV C of Ref. [1], is the half that remains encoding specific.

Also, delocalizing the parity makes the interaction term \(n_j n_{j+1}\) weight-2 rather than diagonal in single qubits, which is the counterpart cost to the cheaper hopping terms.

Next: two dimensions

Everything above is one-dimensional, and deliberately so. On a chain, the flow sets are just the two arrow orientations, and the encoding needs a single ancilla. Neither simplification survives in two dimensions, which is where local encodings are needed.

On a planar lattice, a flow set is a directed path (or a union of vertex-disjoint directed paths) through the interaction graph, and finding a small set of such paths that covers every edge becomes a combinatorial problem in its own right, rather than a two-line classification. The encodings also change character; instead of a single ancilla for the whole chain, they add one per lattice site or cell. Verstraete-Cirac pairs every fermionic site with its own auxiliary qubit, a qubit-to-mode ratio of \(2\), while Derby-Klassen places one at the center of each odd plaquette, for a ratio of \(3/2\). The register layout then has genuine two-dimensional structure, and the stabilizer group that must be projected onto is no longer trivial. The encoded Hamiltonian is only faithful on a subspace, which changes both state preparation and the verification recipe from step 4.

The pieces this guide builds are the ones that carry over: CustomF2QLayout for a register whose size differs from the mode count, map_transfer_vertex_generators() for the encoding itself, MapperFnEvolutionSynthesis for wiring it into the transpiler, and a custom EvolutionSynthesis for making the flow-set structure pay off. Only the encoding and the flow-set decomposition are different.

The 2D flow-set guide picks up here, working through the Verstraete-Cirac encoding on a square lattice: four flow sets, a depth-2 Clifford for each, and the stabilizer projection the verification then needs.

[1] (1,2,3,4,5,6,7,8,9)

A. Gandon, S. Piccinelli, M. Rossmannek, F. Tacchino, A. Baiardi, J. Nys, and I. Tavernelli, Stabilizer-based quantum simulation of fermion dynamics with local qubit encodings (2026), arXiv:2512.11418v2.
