Deferred timing resolution using stretch

The OpenQASM 3 language specification contains a stretch type with which you can specify relative timing of operations instead of absolute timing. Support for stretch as durations for Delay instructions was added in Qiskit v2.0.0. The concrete value of a stretch duration is resolved at compile time, after the exact duration of calibrated gates are known. The compiler tries to minimize the stretch duration, subject to timing constraints on one or more qubits. You can then express gate designs such as evenly spacing gates (for example, to implement a higher-order echo decoupling sequence), left-aligning a sequence of gates, or applying a gate for the duration of some sub-circuit, without knowing the exact timing.

Examples

Dynamical decoupling

A common use case of stretch is to apply dynamical decoupling to an idling qubit while another qubit is undergoing conditional operations.

For example, we can use stretch to apply an XX dynamical decoupling sequence to qubit 1, for the duration of the conditional block applied to qubit 0, as illustrated by the following diagram:

The corresponding circuit would look like the following. Note that a pair of barriers is needed to define the boundaries of this relative timing.

from qiskit.circuit import QuantumCircuit, QuantumRegister, ClassicalRegister
from qiskit.circuit.classical import expr

qubits = QuantumRegister(2)
clbits = ClassicalRegister(2)
circuit = QuantumCircuit(qubits, clbits)
(q0, q1) = qubits
(c0, c1) = clbits

# Add barriers to define the boundaries
circuit.barrier()
circuit.h(q0)
circuit.measure(q0, c0)
with circuit.if_test((c0, 1)) as else_:
    circuit.h(q0)
with else_:
    circuit.x(q0)

# Apply an XX DD sequence with stretch on qubit 1
s = circuit.add_stretch("s")
circuit.delay(s, q1)
circuit.x(q1)
circuit.delay(expr.mul(s, 2), q1)
circuit.x(q1)
circuit.delay(s, q1)
circuit.barrier()

Scheduling alignment

This example uses stretch to ensure a sequence of gates between two barriers are left-aligned, whatever their actual durations are:

from qiskit import QuantumCircuit
from numpy import pi

qc = QuantumCircuit(5)
qc.barrier()
qc.cx(0, 1)
qc.u(pi/4, 0, pi/2, 2)
qc.cx(3, 4)

a = qc.add_stretch("a")
b = qc.add_stretch("b")
c = qc.add_stretch("c")

# Use the stretches as Delay duration.
qc.delay(a, [0, 1])
qc.delay(b, 2)
qc.delay(c, [3, 4])
qc.barrier()

a = circuit.add_stretch("a")
circuit.barrier(q0, q1)
circuit.delay(100, q0)
circuit.delay(a, q1)  # resolve to 26
circuit.x(q1)  # duration: 8
circuit.delay(a, q1)  # resolve to 25
circuit.x(q1)  # duration: 8
circuit.delay(a, q1)  # resolve to 25
circuit.x(q1)  # duration: 8
circuit.barrier(q0, q1)

View stretch values in Qiskit Runtime

The actual value of a stretch duration is resolved at compile time, after the circuit is scheduled. When running a Sampler job in Qiskit Runtime, you can view the resolved stretch values in the job result metadata. Support for stretch in Qiskit Runtime is currently experimental, so you need to first set an experimental option to enable its retrieval, then access the data directly from the metadata as follows:

# Enable stretch value retrieval.
sampler.options.experimental = {
    "execution": {
        "stretch_values": True,
        "scheduler_timing": True,
    },
}

# Access the stretch values from the metadata.
job_result = job.result()
circuit_stretch_values = job_result[0].metadata["compilation"]["stretch_values"]

# Visualize the timing.
# Use the sliders at the bottom, the controls at the top, and the legend on the side
# of the output to customize the view.
draw_circuit_schedule_timing(vulqan_job.result()[0].metadata['compilation']['scheduler_timing']['timing'])

Understand the metadata output

The stretch_values metadata returns the following information:

• Name: The name of the applied stretch
• Value: The requested goal value
• Remainder: The remainder from resolving the stretch, which is added to the first delay that uses the stretch.
• Expanded values: Sets of values that specify the stretch start and its duration

Example output

 [{'name': 'bar',
  'value': 29,
  'remainder': 1,
  'expanded_values': [[1394, 30], [1404, 29]]},
 {'name': 'foo',
  'value': 8,
  'remainder': 2,
  'expanded_values': [[1405, 10], [1400, 24], [1417, 16]]}
  ]

You can also use a visualization (which requires plotly) to help understand and verify the timing.

draw_circuit_schedule_timing(vulqan_job.result()[0].metadata['compilation']['scheduler_timing']['timing'])

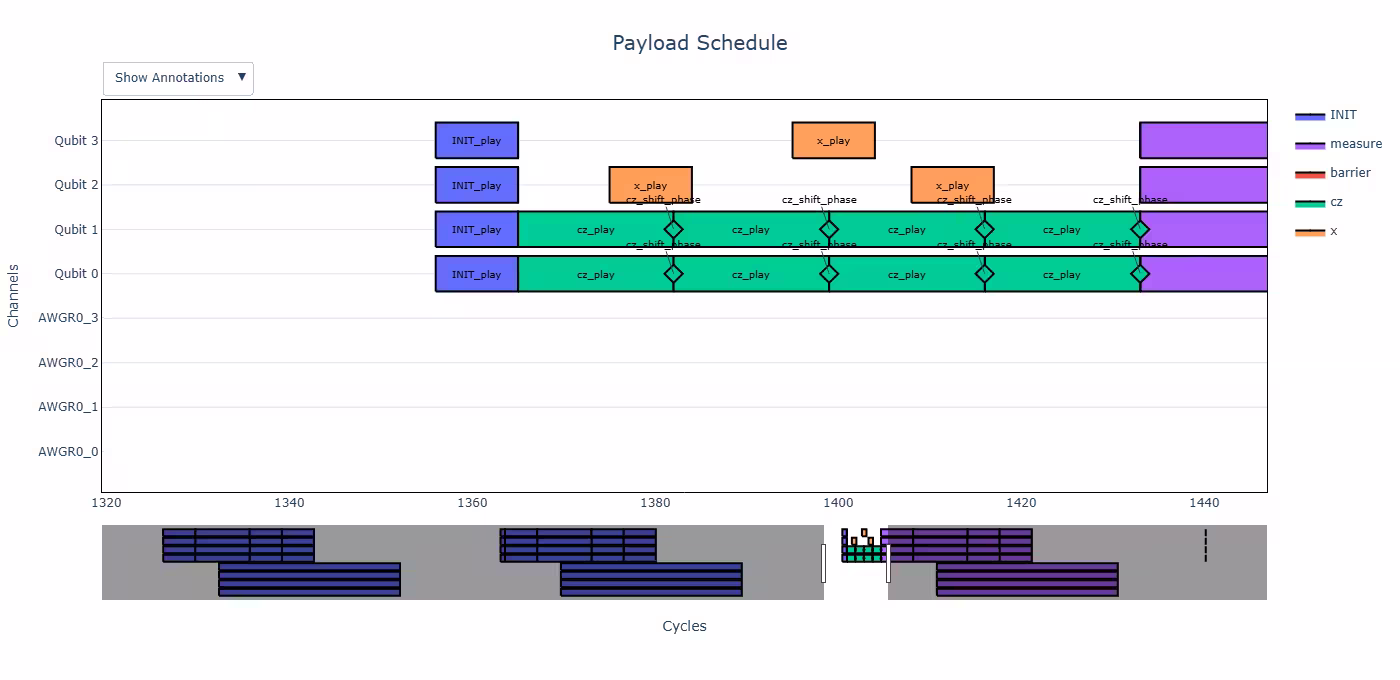

In the following image, based on the example output, bar corresponds to the stretches on Qubit 3. The first stretch delay that uses bar starts at the end of the init_play (1394). The stretch duration is 30 so that delay ends when the x gate starts (1394+30 = 1424).

Use the sliders at the bottom, the controls at the top (hover over the image to reveal these), and the legend on the side of the output to customize the view. Hover over the image to view exact data.

Qiskit Runtime limitations

Support for stretch in Qiskit Runtime is currently experimental and has the following constraints:

• At most one stretch variable per qubit set between barriers (implicit and explicit). A qubit set is one or more qubits; these sets must be mutually exclusive.

  Invalid

  Valid

  a = circuit.add_stretch("a")
  b = circuit.add_stretch("b")
  circuit.delay(a, (q0, q1))
  circuit.delay(b, q0)  # Invalid because 2 stretches are applied on q0

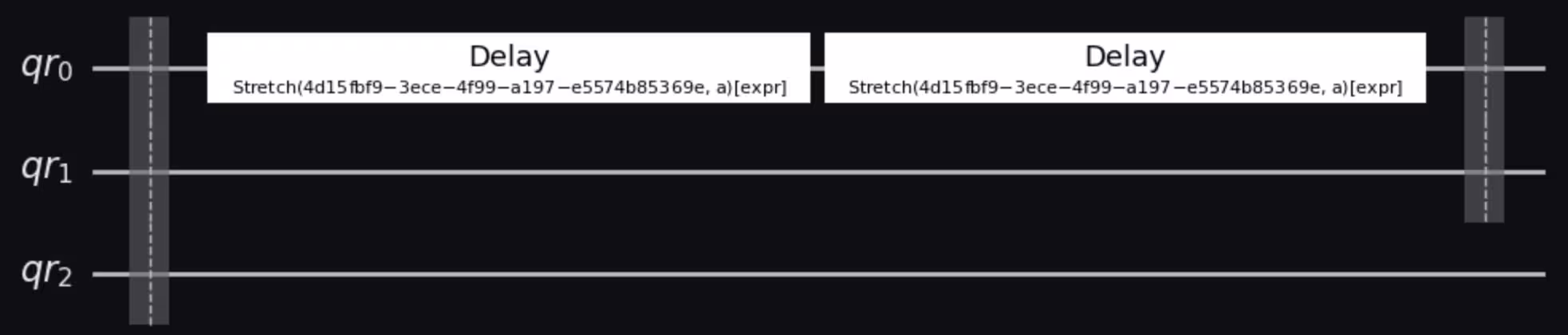

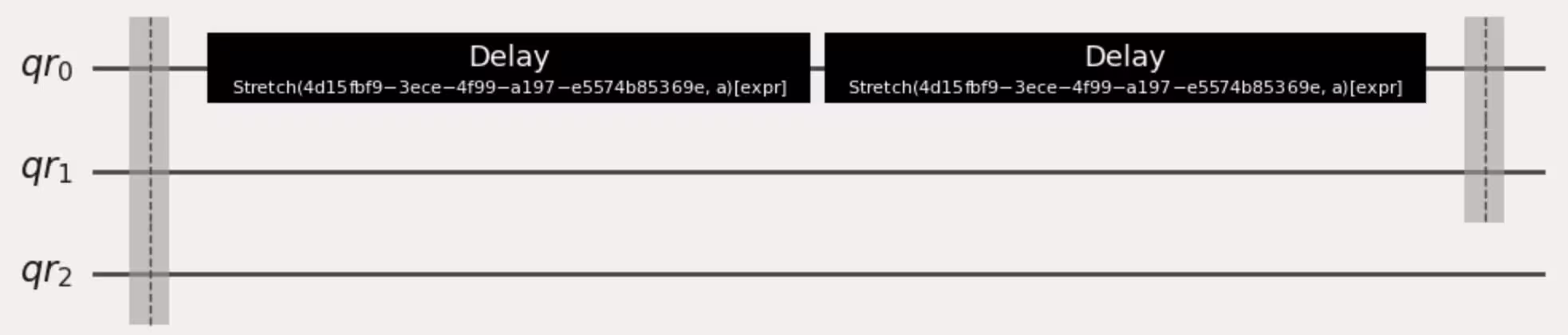

• The area surrounded by a set of barriers is called a barrier region. A stretch variable cannot be used in multiple barrier regions.

  Invalid

  Valid

  # Stretch a is used in two barrier regions
  a = circuit.add_stretch("a")
  circuit.barrier((q0, q1))
  circuit.delay(a, q0)
  circuit.barrier((q0, q1))
  circuit.delay(a, q0)
  circuit.barrier((q0, q1))



• Stretch expressions are limited to those of the form X*stretch + Y where X and Y are floating point or integer constants.

  Invalid

  Valid

  a = circuit.add_stretch("a")
  b = circuit.add_stretch("b")
  c = circuit.add_stretch("c")

  # (a /  b) * c is not supported
  circuit.delay(expr.mul(expr.div(a, b), c), q1)

• Stretch expressions can only include a single stretch variable.

  Invalid

  Valid

  a = circuit.add_stretch("a")
  b = circuit.add_stretch("b")
  circuit.delay(expr.add(a, b), 0)

• Stretch expressions cannot resolve to negative delay values. The current solver doesn't infer non-negativity constraints.

  Invalid

  Valid

  from qiskit.circuit import Duration

  circuit.barrier((q0, q1))
  circuit.delay(20, q1)
  # The length of this barrier region is 20dt, meaning the
  # equation for solving stretch 'a' is a + 40dt = 20dt, giving a = -20dt.
  circuit.delay(expr.add(a, Duration.dt(40)), q0)
  circuit.barrier((q0, q1))
