Nishimori phase transition

Usage estimate: 3 minutes on IBM Torino (NOTE: This is an estimate only. Your runtime may vary.)

Background

This tutorial demonstrates how to realize a Nishimori phase transition on an IBM quantum processor. This experiment was originally described in Realizing the Nishimori transition across the error threshold for constant-depth quantum circuits .

The Nishimori phase transition refers to the transition between short- and long-range ordered phases in the random-bond Ising model. On a quantum computer, the long-range ordered phase manifests as a state in which qubits are entangled across the entire device. This highly entangled state is prepared using the generation of entanglement by measurement (GEM) protocol. By utilizing mid-circuit measurements, the GEM protocol is able to entangle qubits across the entire device using circuits of only constant depth. This tutorial uses the implementation of the GEM protocol from the GEM Suite software package.

Requirements

Before starting this tutorial, be sure you have the following installed:

Qiskit SDK v1.0 or later, with visualization support ( pip install 'qiskit[visualization]' )
Qiskit Runtime 0.22 or later ( pip install qiskit-ibm-runtime )
GEM Suite ( pip install gem-suite )

Setup

import matplotlib.pyplot as plt

from collections import defaultdict

from qiskit_ibm_runtime import QiskitRuntimeService

from qiskit.transpiler import generate_preset_pass_manager

from gem_suite import PlaquetteLattice
from gem_suite.experiments import GemExperiment

Step 1: Map classical inputs to a quantum problem

The GEM protocol works on a quantum processor with qubit connectivity described by a lattice. Today's IBM quantum processors use the heavy hex lattice . The qubits of the processor are grouped into plaquettes based on which unit cell of the lattice they occupy. Because a qubit might occur in more than one unit cell, the plaquettes are not disjoint. On the heavy hex lattice, a plaquette contains 12 qubits. The plaquettes themselves also form lattice, where two plaquettes are connected if they share any qubits. On the heavy hex lattice, neighboring plaquettes share 3 qubits.

In the GEM Suite software package, the fundamental class for implementing the GEM protocol is PlaquetteLattice, which represents the lattice of plaquettes (which is distinct from the heavy hex lattice). A PlaquetteLattice can be initialized from a qubit coupling map. Currently, only heavy hex coupling maps are supported.

The following code cell initializes a plaquette lattice from the coupling map of a IBM Quantum processor. The plaquette lattice does not always encompass the entire hardware. For example, ibm_torino has 133 total qubits, but the largest plaquette lattice that fits on the device uses only 125 of them, and comprises a total of 18 plaquettes. Similar can be observed for IBM Quantum devices with different qubit counts as well.

# QiskitRuntimeService.save_account(channel="ibm_quantum", token="<MY_IBM_QUANTUM_TOKEN>", overwrite=True, set_as_default=True)
service = QiskitRuntimeService()
backend = service.least_busy(
    operational=True, simulator=False, min_num_qubits=127
)
plaquette_lattice = PlaquetteLattice.from_coupling_map(backend.coupling_map)

print(f"Number of qubits in backend: {backend.num_qubits}")
print(
    f"Number of qubits in plaquette lattice: {len(list(plaquette_lattice.qubits()))}"
)
print(f"Number of plaquettes: {len(list(plaquette_lattice.plaquettes()))}")

Output:

Number of qubits in backend: 133
Number of qubits in plaquette lattice: 125
Number of plaquettes: 18

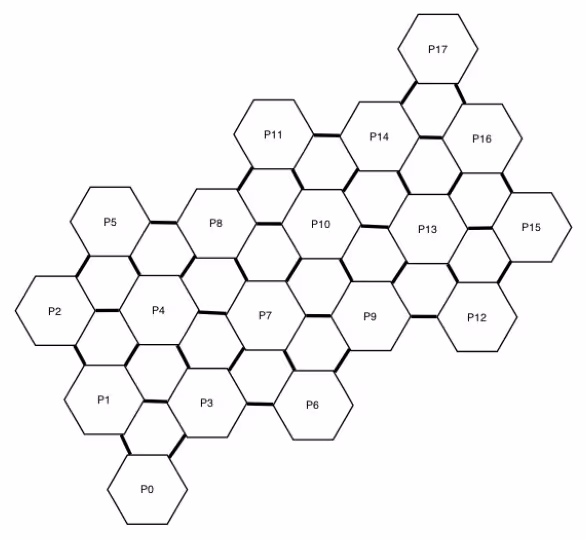

You can visualize the plaquette lattice by generating a diagram of its graph representation. In the diagram, the plaquettes are represented by labeled hexagons, and two plaquettes are connected by an edge if they share qubits.

plaquette_lattice.draw_plaquettes()

Output:

You can retrieve information about individual plaquettes, such as the qubits they contain, using the plaquettes method.

# Get a list of the plaquettes
plaquettes = list(plaquette_lattice.plaquettes())
# Display information about plaquette 0
plaquettes[0]

Output:

PyPlaquette(index=0, qubits=[0, 1, 2, 3, 4, 15, 16, 19, 20, 21, 22, 23], neighbors=[3, 1])

You can also produce a diagram of the underlying qubits that form the plaquette lattice.

plaquette_lattice.draw_qubits()

Output:

In addition to the qubit labels and the edges indicating which qubits are connected, the diagram contains three additional pieces of information that are relevant to the GEM protocol:

Each qubit is either shaded (gray) or unshaded. The shaded qubits are "site" qubits that represent the sites of the Ising model, and the unshaded qubits are "bond" qubits used to mediate interactions between the site qubits.
Each site qubit is labeled either (A) or (B), indicating one of two roles a site qubit can play in the GEM protocol (the roles are explained later).
Each edge is colored using one of 6 colors, thus partitioning the edges into 6 groups. This partitioning determines how two-qubit gates can be parallelized, as well as different scheduling patterns that are likely to incur different amounts of error on a noisy quantum processor. Because edges in a group are disjoint, a layer of two-qubit gates can be applied on those edges simultaneously. In fact, it is possible to partition the 6 colors into 3 groups of 2 colors such that the union of each group of 2 colors is still disjoint. Therefore, only 3 layers of two-qubit gates are needed to activate every edge. There are 12 ways to so partition the 6 colors, and each such partition yields a different 3-layer gate schedule.

Now that you have created a plaquette lattice, the next step is to initialize a GemExperiment object, passing both the plaquette lattice and the backend that you intend to run the experiment on. The GemExperiment class manages the actual implementation of the GEM protocol, including generating circuits, submitting jobs, and analyzing the data. The following code cell initializes the experiment class while restricting the plaquette lattice to only two of the plaquettes (21 qubits), reducing the size of the experiment to ensure that the noise in the hardware doesn't overwhelm the signal.

gem_exp = GemExperiment(plaquette_lattice.filter([9, 12]), backend=backend)

# visualize the plaquette lattice after filtering
plaquette_lattice.filter([9, 12]).draw_qubits()

Output:

A GEM protocol circuit is built using the following steps:

Prepare the all- $|+\rangle$ state by applying a Hadamard gate to every qubit.
Apply an $R_{ZZ}$ gate between every pair of connected qubits. This can be achieved using 3 layers of gates. Each $R_{ZZ}$ gate acts on a site qubit and a bond qubit. If the site qubit is labeled (B), then the angle is fixed to $\frac{\pi}{2}$ . If the site qubit is labeled (A), then the angle is allowed to vary, producing different circuits. By default, the range of angles is set to 21 equally spaced points between $0$ and $\frac{\pi}{2}$ , inclusive.
Measure each bond qubit in the Pauli $X$ basis. Since qubits are measured in the Pauli $Z$ basis, this can be accomplished by applying a Hadamard gate before measuring the qubit.

R_{ZZ}

R_{ZZ}

\lvert \text{GHZ} \rangle = \lvert 00 \cdots 00 \rangle + \lvert 11 \cdots 11 \rangle.

\lvert 00110 \rangle + \lvert 11001 \rangle

In the description above, the site qubits were left unmeasured, and the decoding operation can be performed by applying quantum gates. In the experiment as implemented in the GEM suite, which this tutorial follows, the site qubits are in fact measured, and the decoding operation is applied in a classical post-processing step.

In the description above, the decoding operation can be performed by applying quantum gates to the site qubits to recover the quantum state. However, if the goal is to immediately measure the state, for example, for characterization purposes, then the site qubits are measured together with the bond qubits, and the decoding operation can be applied in a classical post-processing step. This is how the experiment is implemented in the GEM suite, which this tutorial follows.

R_{ZZ}

The circuits of the experiment can be generated using the circuits method of the GemExperiment class.

circuits = gem_exp.circuits()
print(f"Total number of circuits: {len(circuits)}")

Output:

Total number of circuits: 252

R_{ZZ}

# Restrict experiment to the first scheduling pattern
gem_exp.set_experiment_options(schedule_idx=0)

# There are less circuits now
circuits = gem_exp.circuits()
print(f"Total number of circuits: {len(circuits)}")

# Print the RZZ angles swept over
print(f"RZZ angles:\n{gem_exp.parameters()}")

Output:

Total number of circuits: 21
RZZ angles:
[0.         0.07853982 0.15707963 0.23561945 0.31415927 0.39269908
 0.4712389  0.54977871 0.62831853 0.70685835 0.78539816 0.86393798
 0.9424778  1.02101761 1.09955743 1.17809725 1.25663706 1.33517688
 1.41371669 1.49225651 1.57079633]

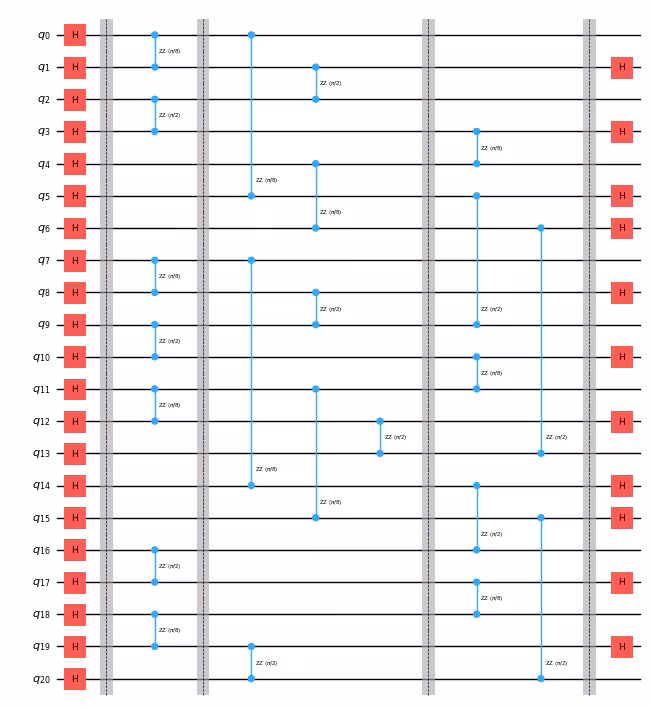

The following code cell draws a diagram of the circuit at index 5. To reduce the size of the diagram, the measurement gates at the end of the circuit are removed.

# Get the circuit at index 5
circuit = circuits[5]
# Remove the final measurements to ease visualization
circuit.remove_final_measurements()
# Draw the circuit
circuit.draw("mpl", fold=-1, scale=0.5)

Output:

Step 2: Optimize problem for quantum hardware execution

R_{ZZ}

The GemExperiment class transparently transpiles circuits when executing the experiment. The layout and routing stages are already overridden by default to do nothing, and circuit optimization is performed at a level that only optimizes single-qubit gates. However, you can override or pass additional options using the set_transpile_options method. For the sake of visualization, the following code cell manually transpiles the circuit displayed previously, and draws the transpiled circuit.

# Demonstrate setting transpile options
gem_exp.set_transpile_options(
    optimization_level=1  # This is the default optimization level
)
pass_manager = generate_preset_pass_manager(
    backend=backend,
    initial_layout=list(gem_exp.physical_qubits),
    **dict(gem_exp.transpile_options),
)
transpiled = pass_manager.run(circuit)
transpiled.draw("mpl", idle_wires=False, fold=-1, scale=0.5)

Output:

Step 3: Execute using Qiskit primitives

To execute the GEM protocol circuits on the hardware, call the run method of the GemExperiment object. You can specify the number of shots you want to sample from each circuit. The run method returns an ExperimentData object which you should save to a variable. Note that the run method only submits jobs without waiting for them to finish, so it is a non-blocking call.

exp_data = gem_exp.run(shots=10_000)

To wait for the results, call the block_for_results method of the ExperimentData object. This call will cause the interpreter to hang until the jobs are finished.

exp_data.block_for_results()

Output:

ExperimentData(GemExperiment, d0d5880a-34c1-4aab-a7b6-c4f58516bc03, job_ids=['cwg12ptmptp00082khhg'], metadata=<5 items>, figure_names=['two_point_correlation.svg', 'normalized_variance.svg', 'plaquette_ops.svg', 'bond_ops.svg'])

Step 4: Post-process and return result in desired classical format

R_{ZZ}

M = \sum_{j=1}^N Z_j,

N

For the raw bitstrings before decoding, the distribution of the magnetization would be equivalent to that of uniformly random bitstrings, in the absence of noise.

R_{ZZ}

def magnetization_distribution(
    counts_dict: dict[str, int],
) -> dict[str, float]:
    """Compute magnetization distribution from counts dictionary."""
    # Construct dictionary from magnetization to count
    mag_dist = defaultdict(float)
    for bitstring, count in counts_dict.items():
        mag = bitstring.count("0") - bitstring.count("1")
        mag_dist[mag] += count
    # Normalize
    shots = sum(counts_dict.values())
    for mag in mag_dist:
        mag_dist[mag] /= shots
    return mag_dist


# Get counts dictionaries with and without decoding
data = exp_data.data()
# Get the last data point, which is at the angle for the GHZ state
raw_counts = data[-1]["counts"]
# Without decoding
site_indices = [
    i for i, q in enumerate(gem_exp.plaquettes.qubits()) if q.role == "Site"
]
site_raw_counts = defaultdict(int)
for key, val in raw_counts.items():
    site_str = "".join(key[-1 - i] for i in site_indices)
    site_raw_counts[site_str] += val
# With decoding
_, site_decoded_counts = gem_exp.plaquettes.decode_outcomes(
    raw_counts, return_counts=True
)

# Compute magnetization distribution
raw_magnetization = magnetization_distribution(site_raw_counts)
decoded_magnetization = magnetization_distribution(site_decoded_counts)

# Plot
plt.bar(*zip(*raw_magnetization.items()), label="raw")
plt.bar(*zip(*decoded_magnetization.items()), label="decoded", width=0.3)
plt.legend()
plt.xlabel("Magnetization")
plt.ylabel("Frequency")
plt.title("Magnetization distribution with and without decoding")

Output:

Text(0.5, 1.0, 'Magnetization distribution with and without decoding')

f

f = \frac{1}{N^2} \left(\langle M^2 \rangle - \langle M \rangle ^2\right).

A higher value indicates a greater degree of entanglement. The GemExperiment class automatically computes this value for the decoded bitstrings as part of processing the experimental data. It stores a figure that is accessible via the figure method of the experiment data class. In this case, the name of the figure is two_point_correlation .

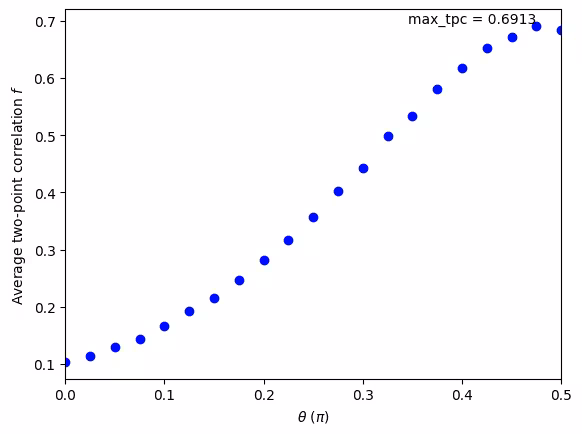

exp_data.figure("two_point_correlation")

Output:

M^2 / N

g = \frac{1}{N^3} \left(\langle M^4 \rangle - \langle M^2 \rangle^2\right),

0.3 \pi

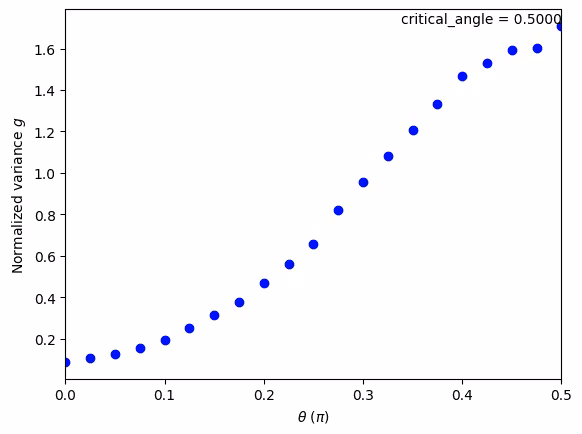

exp_data.figure("normalized_variance")

Output:

Scale up the experiment

The following code cells run the experiment for 6 plaquettes (49 qubits) and the full 12 plaquettes (125 qubits) and plot the normalized variance. As the experiment is scaled to larger sizes, the greater amount of noise shifts the critical point rightwards.

gem_exp = GemExperiment(
    plaquette_lattice.filter(range(3, 9)), backend=backend
)
gem_exp.set_experiment_options(schedule_idx=0)
exp_data = gem_exp.run(shots=10_000)
exp_data.block_for_results()
exp_data.figure("normalized_variance")

Output:

gem_exp = GemExperiment(plaquette_lattice, backend=backend)
gem_exp.set_experiment_options(schedule_idx=0)
exp_data = gem_exp.run(shots=10_000)
exp_data.block_for_results()
exp_data.figure("normalized_variance")

Output:

Conclusion

In this tutorial, you realized a Nishimori phase transition on a quantum processor using the GEM protocol. The metrics that you examined during post-processing, in particular the two-point correlation and the normalized variance, serve as benchmarks of the device's ability to generate long-range entangled states. These benchmarks extend the utility of the GEM protocol beyond probing interesting physics. As part of the protocol, you entangled qubits across the entire device using circuits of only constant depth. This feat is only possible due to the protocol's use of mid-circuit measurements. In this experiment, the entangled state was immediately measured, but an interesting avenue to explore would be to continue using the state in additional quantum processing!
